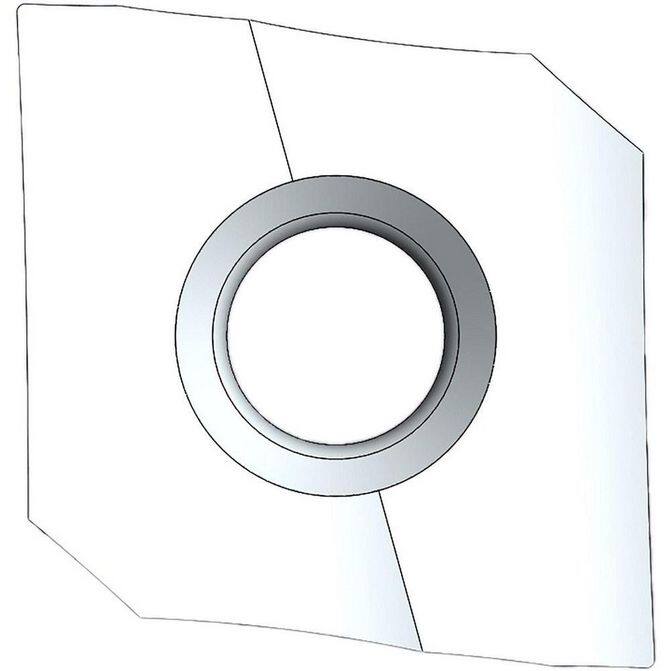

Manufacturer Part Number: ADEH-431 Z9|Insert Style|ADEHInsert Size|4Insert Material|CarbideInsert Shape|ParallelogramInscribed Circle (Inch)|1/2Manufacturer Grade|Z9Corner Radius (Decimal Inch)|0.0100Corner Radius (mm)|Number Of Cutting Edges|2Thickness (Decimal Inch - 4 Decimals)|0.1875Thickness (mm)|Coating/Finish|Bright/UncoatedRelief Angle|15Maximum Depth of Cut (Decimal Inch)|0.3750Maximum Depth of Cut (mm)|Insert Size Code|431Material Grade|Width (Inch)|1/2inLength (Inch)|1/2inThickness (Inch)|3/16Inscribed Circle (Decimal Inch)|0.5000Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.1850 to 0.2000Corner Radius (Inch)|Inscribed Circle Range (Decimal Inch)|0.5000 to 0.5100Length Range (Decimal Inch)|0.5000 to 0.6000Insert Hand|Right HandSeries|ADEHCoating Process|Hole Diameter (Mm) ( - 0 Decimals)|3.50Hole Diameter (Decimal Inch)|Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Non-Ferrous MetalPrimary Workpiece Material Code|NSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|ADEH431Iso Code|Standards|ANSIConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|Manufacturers Catalog Number|ADEH431Cutter Series Compatibility|Shear-HogsChip Breaker|NoneCutting Direction|Right HandMaterial Application|AluminumUNSPSC Code|23291601Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|Single or Double Sided Insert|SingleIncluded Angle Degree|85Length (mm)|Width (Decimal Inch - 4 Decimals)|0.5000inWidth (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.5000System Of Measurement|Decimal Inch
