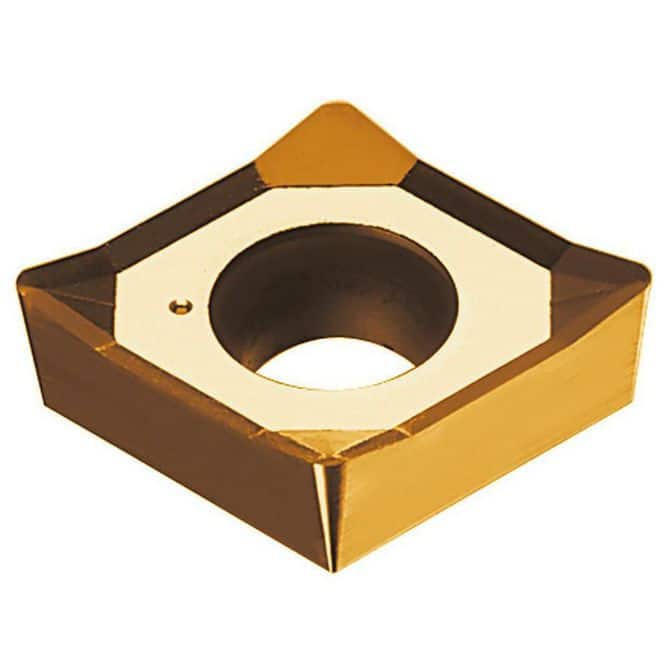

Manufacturer Part Number: 12386|Relief Angle|7Corner Radius (mm)|0.40Corner Radius (Inch)|1/64Corner Radius (Decimal Inch)|0.0157Included Angle|80Manufacturer Grade|AK10Coating/Finish|Bright/UncoatedWiper Edge|NoInsert Hand|NeutralInsert Thickness|3.97Insert Thickness (Inch)|5/32Insert Thickness (Decimal Inch)|0.1563Series|CCGTInscribed Circle (Inch)|3/8Inscribed Circle (Decimal Inch)|0.3748Inscribed Circle (mm)|9.53Insert Material|CarbideInsert Shape|Diamond 80Chipbreaker Operation|Grade Characteristics|Number Of Cutting Edges|2Insert Shape Code|CSingle Or Double End|Hole Diameter (Decimal Inch)|0.1732Hole Diameter (Mm) ( - 0 Decimals)|Maximum Depth of Cut (mm)|4.00Maximum Depth of Cut (Decimal Inch)|0.1575Maximum Depth of Cut (Fractional Inch)|Insert Holding Method|ScrewWidth (Inch)|3/8Clearance Code|CTolerance Code|GCoating Process|UncoatedLength Range (Decimal Inch)|Rake|PositiveInsert Length (mm)|9.67Insert Length (Decimal Inch)|0.3807Insert Length (Inch)|Primary Workpiece Material|Non-Ferrous MetalPrimary Workpiece Material Code|NSecondary Workpiece Material|Cast Iron; Super-alloys & TitaniumSecondary Workpiece Material Code|K; SAnsi Code|Iso Code|CCGT 09T304FN-ALUStandards|ANSI; ISOManufacturers Catalog Number|12386Cutting Direction|Material Grade|N05; N25Single or Multi Tipped|Stocking Category|Proprietary Coating Designation|UncoatedLead Angle|Coating Classification|UncoatedChip Breaker|ALURake Angle|Cutting Edge Style|SharpStyle|Industry Standard Number|CCGT32.51FN-ALUWidth (Decimal Inch - 4 Decimals)|0.375Width (mm - 2 Decimals)|9.53Multi-Use Tool|YesFull Radius|NoMulti-Use Application|Turning; Facing; BoringTip Length (Decimal Inch)|Tip Length (mm)|ANSI Size Code|ISO Size Code|System Of Measurement|Product Service Code|UNSPSC Code|23242105Insert Style|CCGTInsert Size Code|32.51
