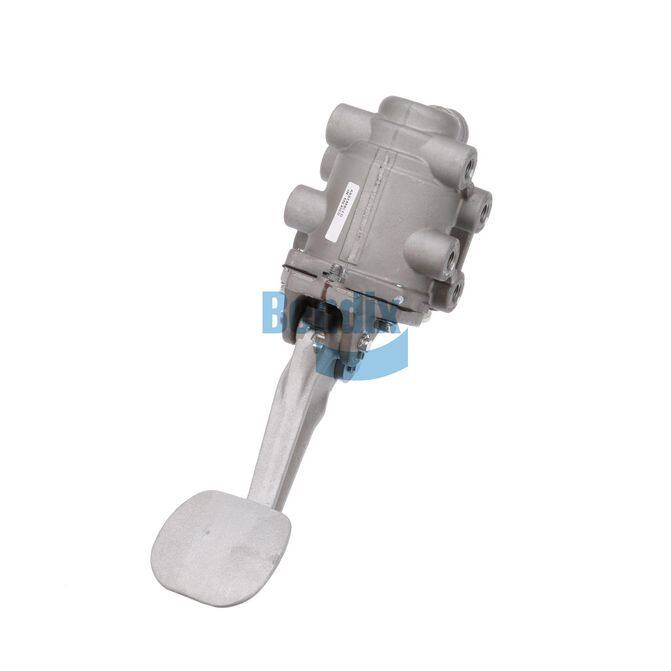

BENDIX-Foot Brake Valve
Part #: 803158|Brand: BENDIX|MPN #: 803158
BENDIX-Foot Brake Valve
Part #: 803158|Brand: BENDIX|MPN #: 803158
Not Found
For inventory inquiries, please contact your local branch at (214) 630-8360

    • Delivery (21) Port 1 : 1/4-18 NPT
    • Delivery (21) Port 2 : 1/4-18 NPT
    • Delivery (21) Port 3 : 1/2-14 NPT (Plugged)
    • Delivery (22) Port 1 : 1/4-18 NPT
    • Delivery (22) Port 2 : 1/4-18 NPT
    • Delivery (22) Port 3 : 1/2-14 NPT (Plugged)
    • Differential Pressure : 3.0 PSI
    • Exhaust Port : 1/2-14 NPT
    • Graduation Spring Style : Rubber
    • Initial Pedal Angle : 49 deg
    • Manifold Included : No
    • Maximum Operating Temperature : 200 deg F (93 deg C)
    • Minimum Operating Temperature : -40 deg F (-40 deg C)
    • Mounting (Valve Body) : 5/16-18 UNC-3B (3x)
    • Mounting (Vehicle) : 3/8-24 UNC-2A Stud (3x)
    • Mounting Nuts / Washers Included : No
    • Mounting Plate Included : Yes
    • Mounting Stud Length : 0.75 IN
    • Pedal Included : Yes
    • Pedal Length (from Pivot) : 8.56 IN
    • Pedal Length (Overall) : 9.70 IN
    • Pedal Material : Cast Aluminum
    • Pedal Offset : .88 IN (Right)
    • Pedal Pad Included : No
    • Pedal Style : Suspended (Pedal)
    • Plunger Material : Steel
    • Port Configuration : Side / Rear
    • Regulatory Compliance : FMVSS 121
    • Rubber Boot Included : No
    • Supply (11) Port 1 : 1/4-18 NPT
    • Supply (11) Port 2 : 1/4-18 NPT
    • Supply (11) Port 3 : 1/2-14 NPT (Plugged)
    • Supply (12) Port 1 : 1/4-18 NPT
    • Supply (12) Port 2 : 1/4-18 NPT
    • Supply (12) Port 3 : 1/2-14 NPT (Plugged)
    • Supply (12) Port 4 : 1/8-27 NPT (Plugged)
    • Total Pedal Travel : 17 deg
    • Waterproof : Yes

  • 289352N

  • Warranty Time Period1 Year
    Warranty Mileage100,000 miles
