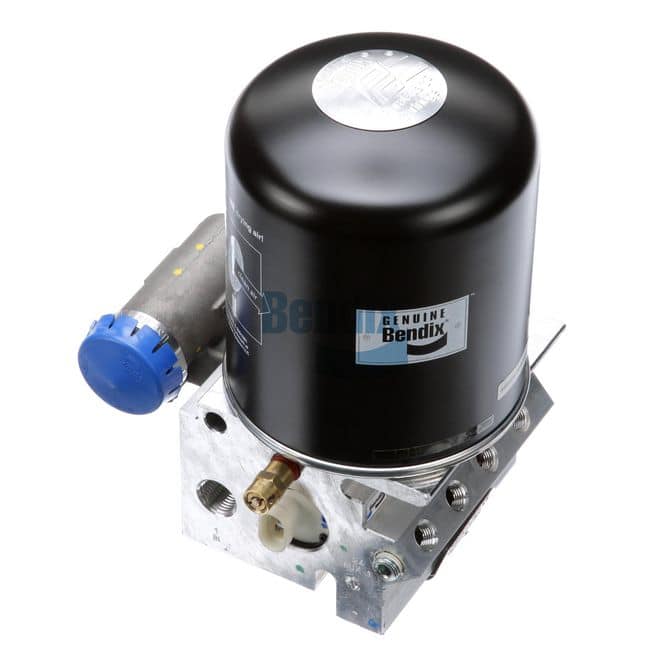

- Air Dryer Type : Stand-Alone
- AUX 1 Delivery Opening Pressure : 109 PSI
- AUX 1 Delivery Port 1 : 1/4-18 NPT (Plugged)
- AUX 1 Delivery Port 2 : 1/4-18 NPT
- AUX 1 Delivery Port 3 : 1/4-18 NPT
- AUX 1 Delivery Port 4 : 1/4-18 NPT
- AUX 2 Delivery Opening Pressure : 109 PSI
- AUX 2 Delivery Port : 1/4-18 NPT
- Cartridge Thread : M39 x 1.5-6H RH
- Cartridge Type : PuraGuard (Coalescing)
- Cautionary Note(s) : Pressure protection valve configs are not interchangeable.
- Clearance to Remove Cartridge : 1.00 IN
- Cut-in Pressure : 110 PSI
- Cut-out Pressure : 130 PSI
- Governor Included : Yes
- Governor Reservoir Port : 1/8-27 NPT (Plugged)
- Governor Type : Non-Adjustable
- Governor Unloader Port : 1/8-27 NPT
- Heater / Thermostat Rating : 12V / 90W
- Heater Connector Color : White
- Heater Connector Type : Metri-Pack 280 Series 2-Way Sealed Connector (Male)
- Maximum Inlet Temperature : 160 deg F (71 deg C)
- Minimum Operating Temperature : -40 deg F (-40 deg C)
- Mounting : Mount to Purge Reservoir (Not Included)
- Pressure Protection Valve Configuration : 4 in Parallel
- PRI Delivery Opening Pressure : 103 PSI
- PRI Delivery Port 21 : 1/4-18 NPT
- Purge Exhaust Port : Standard
- Purge Valve Type : Hard Seat
- Safety Valve Opening Pressure : 153 PSI
- SEC Delivery Opening Pressure : 109 PSI
- SEC Delivery Port 22 : 1/4-18 NPT
- Supply Port : 1/2-14 NPT
