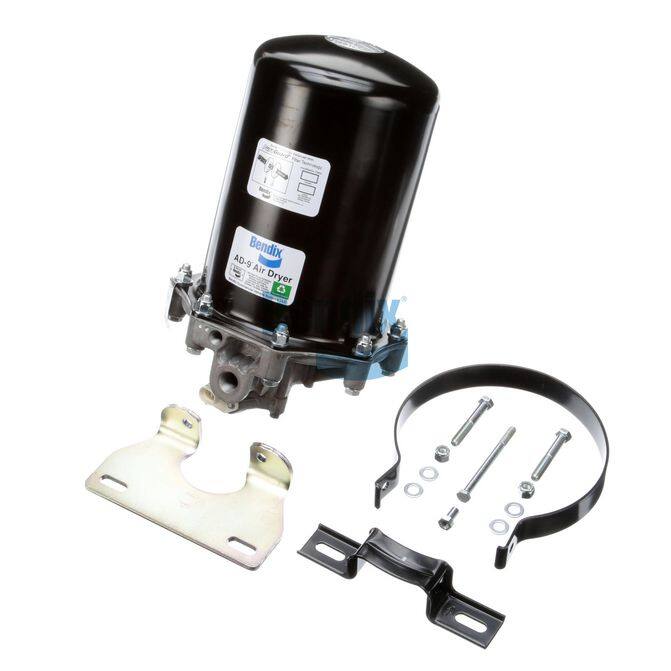

- Air Dryer Type : Stand-Alone
- Body Mounting : A~ .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
- Cartridge Stabilizer Ring Included : No
- Cartridge Thread : 5/8-11 UNC-2A
- Cartridge Type : PuraGuard (Coalescing)
- Cautionary Note(s) : Do not replace PG cartridge with Standard/GC cartridge.
- Clearance to Remove Cartridge : 11.00 IN
- Control Port : 1/4-18 NPT
- Delivery Port 1 : 1/2-14 NPT
- Governor Included : No
- Heater / Thermostat Rating : 12V / 75W
- Heater Connector Color : White
- Heater Connector Type : Metri-Pack 280 Series 2-Way Sealed Connector (Male)
- Lower Mounting Bracket : .41 IN x 1.15 IN Slot (2x)
- Lower Mounting Bracket Angle (CCW from SUP) : Loose in Box
- Maximum Inlet Temperature : 160 deg F (71 deg C)
- Minimum Operating Temperature : -40 deg F (-40 deg C)
- Purge Exhaust Port : Open (No Cover)
- Purge Valve Type : DLU (Hard Seat)
- Purge Volume : Standard
- Safety Valve Opening Pressure : 200 PSI
- Supply Port : 1/2-14 NPT
- Upper Mounting Bracket : .41 IN x 1.15 IN Slot (2x)
- Upper Mounting Bracket Angle (CCW from SUP) : Loose in Box
- Upper Mounting Bracket Height (from Lower Mounting Bracket) : Loose in Box
- Upper Mounting Type : Strap (Carbon Steel)
