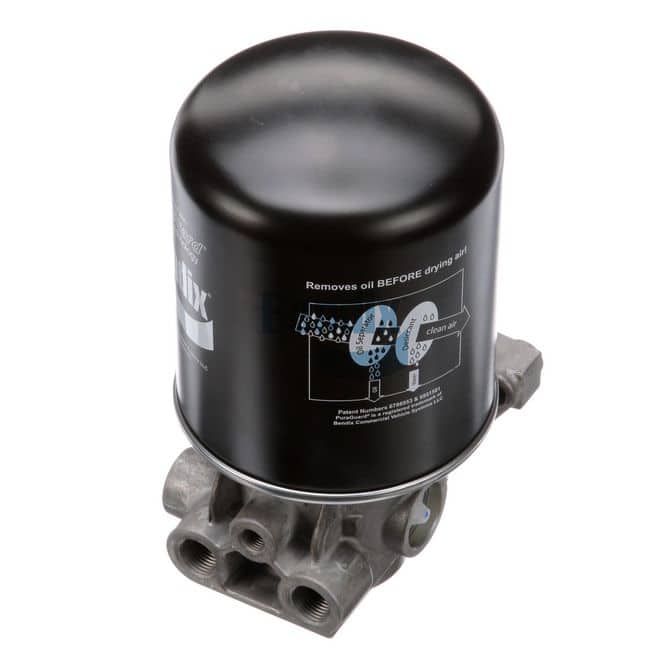

For inventory inquiries, please contact your local branch at (214) 630-8360- Air Dryer Type : Stand-Alone
- Body Mounting : 1/2-13 UNC-2B (3x)
- Cartridge Thread : M39 x 1.5-6H RH
- Cartridge Type : PuraGuard (Coalescing)
- Cautionary Note(s) : Do not replace PG cartridge with Standard/GC cartridge.
- Clearance to Remove Cartridge : 1.00 IN
- Control Port : 1/4-18 NPT
- Delivery Port 1 : 1/2-14 NPT
- Heater / Thermostat Rating : 12V / 90W
- Heater Connector Color : White
- Heater Connector Type : Metri-Pack 280 Series 2-Way Sealed Connector (Male)
- Lower Mounting Bracket : 1/2-13 UNC-2B (3X) - Flange Mount
- Maximum Inlet Temperature : 150 deg F (66 deg C)
- Minimum Operating Temperature : -40 deg F (-40 deg C)
- Purge Exhaust Port : Standard
- Purge Valve Type : Soft Seat
- Purge Volume : System Air - Customer Defined
- Remote Purge Port : 1/4-18 NPT
- Supply Port : 1/2-14 NPT
- Turbo Cut-off Function : No
