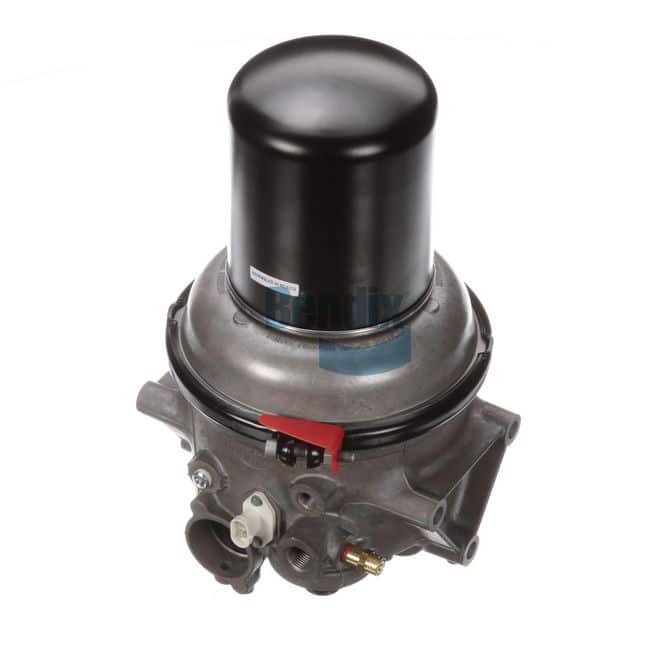

For inventory inquiries, please contact your local branch at (214) 630-8360- Air Dryer Type : Stand-Alone
- Body Mounting : 1/2-13 UNC-2B (3x) - Both Sides
- Cartridge Stabilizer Ring Included : No
- Cartridge Thread : M39 x 1.5-6H RH
- Cartridge Type : Standard
- Clamp Band Angle (CW from SUP) : 335 deg
- Clearance to Remove Cartridge : 1.00 IN
- Control Port : 1/4-18 NPT
- Delivery Port 1 : 1/2-14 NPT
- Delivery Port 2 : 1/2-14 NPT
- Extended Purge Port : 1/4-18 NPT (Plugged)
- Governor Included : No
- Heater / Thermostat Rating : 12V / 75W
- Heater Connector Color : White
- Heater Connector Type : Metri-Pack 280 Series 2-Way Sealed Connector (Male)
- Maximum Inlet Temperature : 160 deg F (71 deg C)
- Minimum Operating Temperature : -40 deg F (-40 deg C)
- Purge Exhaust Port : Standard
- Purge Valve Type : Hard Seat
- Purge Volume : Standard
- Safety Valve Opening Pressure : 200 PSI
- Supply Port : 1/2-14 NPT
- Turbo Cut-off Function : Yes
- 109578
