For inventory inquiries, please contact your local branch at (214) 630-8360- 5/8 in-115/8 in-18Yes9.05 lbThreadedDrum1.57 in3/8 in-182.50 in4.75 in

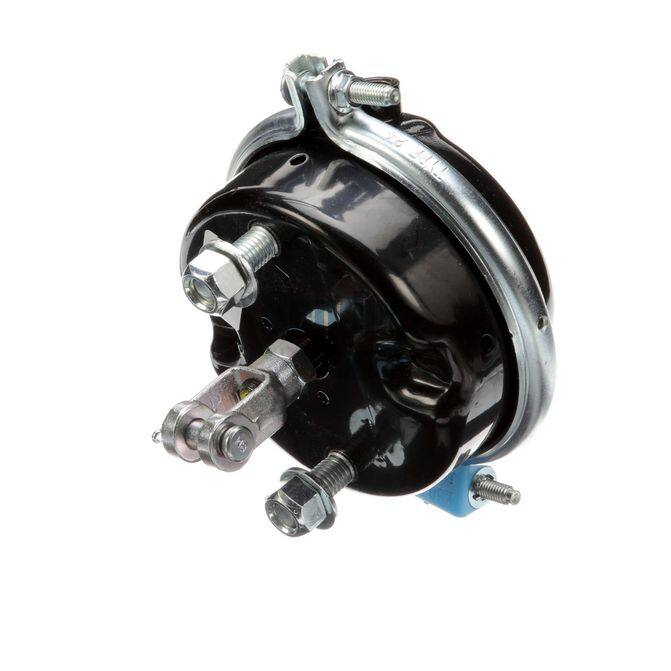

- Chamber Type / Size : T24
- Clamp Angle : 0 deg
- Clevis / Yoke Arm Bushing Pin Diameter : A~ .50 IN (A~ 12.7 MM)
- Clevis / Yoke Style : Threaded (Standard)
- Maximum Operating Temperature : 175 deg F (79 deg C)
- Minimum Operating Temperature : -40 deg F (-40 deg C)
- Mounting Stud Length : 1.57 IN (40 MM)
- Port Angle : 180 deg
- Push Rod Length (to Yoke Pin Center when Applicable) [IN] : 3.14
- Push Rod Thread / Style : 5/8-18 UNF-2A
- Service Chamber Joint Type : Double Clamp Band
- Service Port (11) - Center : 3/8-18 NPT (Plugged)
- Service Port (11) - Side : 3/8-18 NPT
- Stroke : 2.50 IN (63.5 MM)
- Stud Spacing : 4.75 IN (120.7 MM)
- Stud Thread Size : 5/8-11 UNC-2A
- Weatherproof : No
