New Item

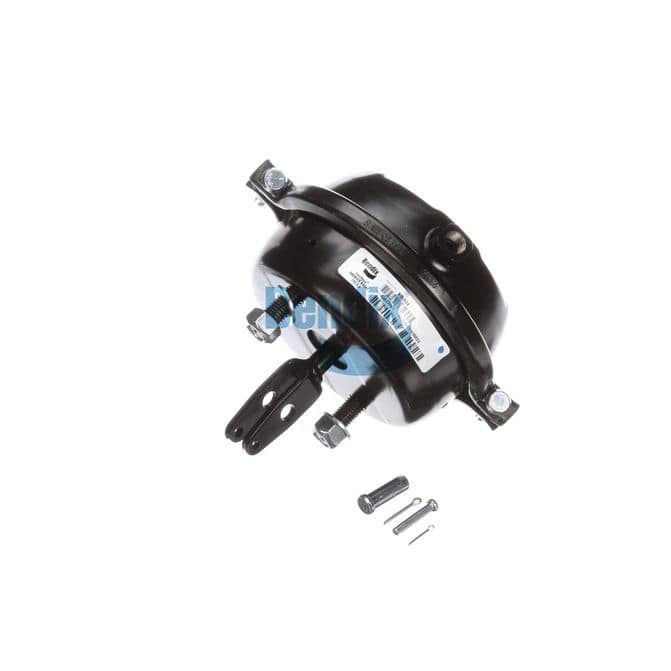

Part #A1228V2310
For pricing, please contact your local branch at (214) 630-8360
Pickup
Not availableat Dallas, TX
Shipping
Not available to 75247
For inventory inquiries, please contact your local branch at (214) 630-8360- YesWelded135 °1.50 in3/8 in-18Drum5/8 in-114.75 in10.39 lb55 °3.00 in30
- Chamber Type / Size : T30
- Clamp Angle : 135 deg
- Clevis / Yoke Arm Bushing Pin Diameter : A~ .50 IN (A~ 12.7 MM)
- Clevis / Yoke Arm Link Pin Diameter : A~ .25 IN (A~ 6.35 MM)
- Clevis / Yoke Pin Spacing : 1.30 IN (33 MM)
- Clevis / Yoke Style : Welded
- Maximum Operating Temperature : 175 deg F (79 deg C)
- Minimum Operating Temperature : -40 deg F (-40 deg C)
- Mounting Stud Length : 1.50 IN (38.1 MM)
- Port Angle : 55 deg
- Push Rod Length (to Yoke Pin Center when Applicable) [IN] : 3.90
- Service Chamber Joint Type : Double Clamp Band
- Service Port (11) - Center : 3/8-18 NPT (Plugged)
- Service Port (11) - Side : 3/8-18 NPT
- Stroke : 3.00 IN (76 MM)
- Stud Spacing : 4.75 IN (120.7 MM)
- Stud Thread Size : 5/8-11 UNC-2A
- Weatherproof : No
