For inventory inquiries, please contact your local branch at (214) 630-8360- 4.75 inDrumYes0 °24Welded3/8 in-185/8 in-111.50 in3.00 in9.03 lb

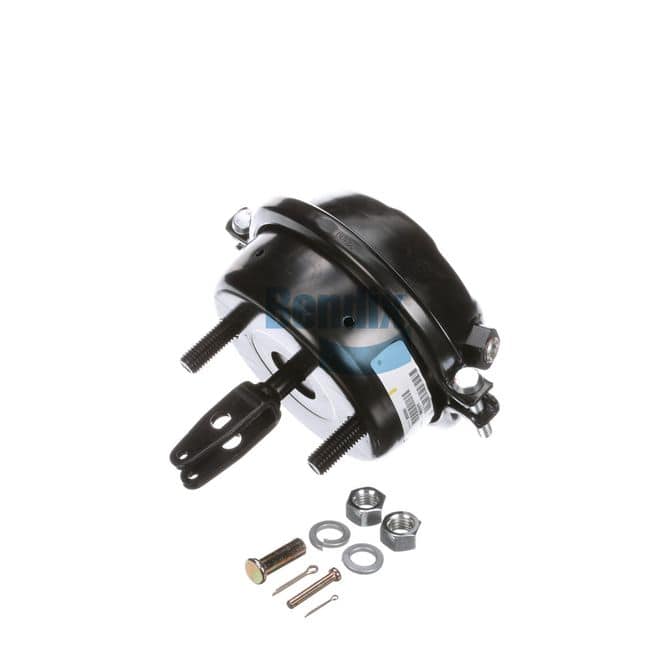

- Chamber Type / Size : T24
- Clamp Angle : 0 deg
- Clevis / Yoke Arm Bushing Pin Diameter : A~ .50 IN (A~ 12.7 MM)
- Clevis / Yoke Arm Link Pin Diameter : A~ .25 IN (A~ 6.35 MM)
- Clevis / Yoke Pin Spacing : 1.30 IN (33 MM)
- Clevis / Yoke Style : Welded
- Maximum Operating Temperature : 175 deg F (79 deg C)
- Minimum Operating Temperature : -40 deg F (-40 deg C)
- Mounting Stud Length : 1.50 IN (38.1 MM)
- Port Angle : 180 deg
- Push Rod Length (to Yoke Pin Center when Applicable) [IN] : 3.90
- Service Chamber Joint Type : Double Clamp Band
- Service Port (11) - Center : 3/8-18 NPT (Plugged)
- Service Port (11) - Side : 3/8-18 NPT
- Stroke : 3.00 IN (76 MM)
- Stud Spacing : 4.75 IN (120.7 MM)
- Stud Thread Size : 5/8-11 UNC-2A
- Weatherproof : No
