For inventory inquiries, please contact your local branch at (214) 630-8360- M22 x 1.51.70 inNoneball end for ADB chambersNo2.25 inAir disc0.59 in24M16 x 1.5All vent holes must be open4.75 in270 °1616.99 lb1.70 in
- Cautionary Note(s) : All vent holes must be open

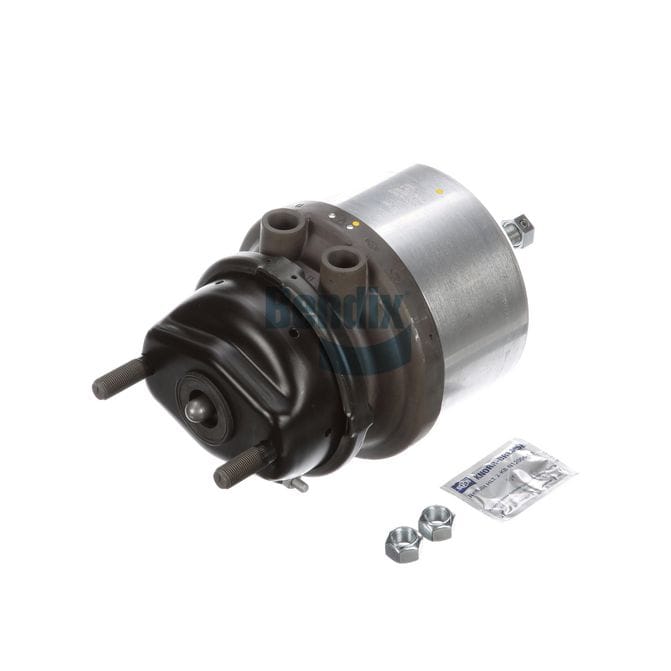

- Chamber Style : Piston
- Chamber Type / Size : T16/24
- Clamp Angle : 90 deg
- Maximum Operating Temperature : 176 deg F (80 deg C)
- Minimum Operating Temperature : -40 deg F (-40 deg C)
- Mounting Stud Length : 1.70 IN (43.2 MM)
- Parking Chamber Sealed : No
- Parking Port (12) : M22 x 1.5-6H
- Port Angle : 270 deg
- Push Rod Length [MM] : 15
- Push Rod Thread / Style : Spherical End
- Service Chamber Joint Type : Single Clamp Band
- Service Chamber Vent Holes : All Open
- Service Port (11) : M22 x 1.5-6H
- Stroke : 2.25 IN (57.2 MM)
- Stud Spacing : 4.75 IN (120.7 MM)
- Stud Thread Size : M16 x 1.5-6g
