- M16 x 1.5No4.75 inAll vent holes must be openball end for ADB chambers1.70 in3/8 in-18290 °2.50 in24None240.59 in1.70 in18.02 lbStandardAir disc
- Cautionary Note(s) : All vent holes must be open

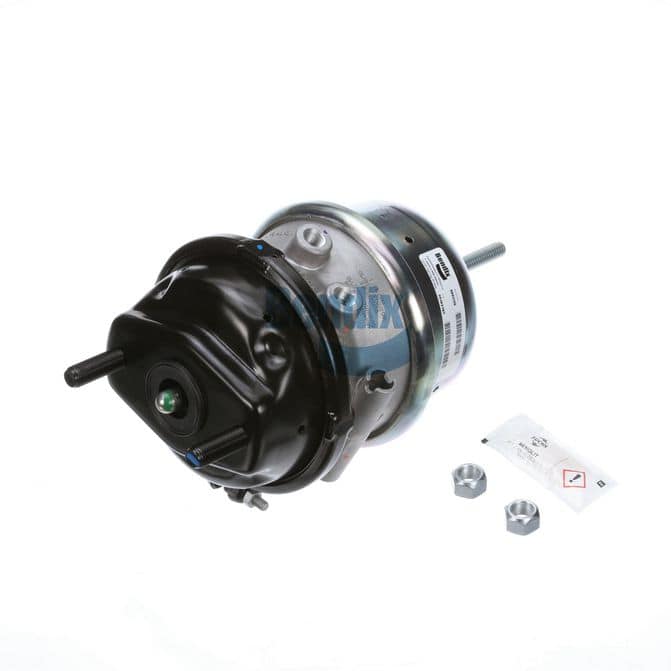

- Chamber Style : Double Diaphragm
- Chamber Type / Size : T24/24
- Clamp Angle : 90 deg
- Maximum Operating Temperature : 176 deg F (80 deg C)
- Minimum Operating Temperature : -40 deg F (-40 deg C)
- Mounting Stud Length : 1.70 IN (43.2 MM)
- Parking Chamber Sealed : No
- Parking Port (12) : 3/8-18 NPTF
- Port Angle : 290 deg
- Push Rod Length [MM] : 15
- Push Rod Thread / Style : Spherical End
- Service Chamber Joint Type : Single Clamp Band
- Service Chamber Vent Holes : All Open
- Service Port (11) : 3/8-18 NPTF
- Stroke : 2.50 IN (63.5 MM)
- Stud Spacing : 4.75 IN (120.7 MM)
- Stud Thread Size : M16 x 1.5-6g
