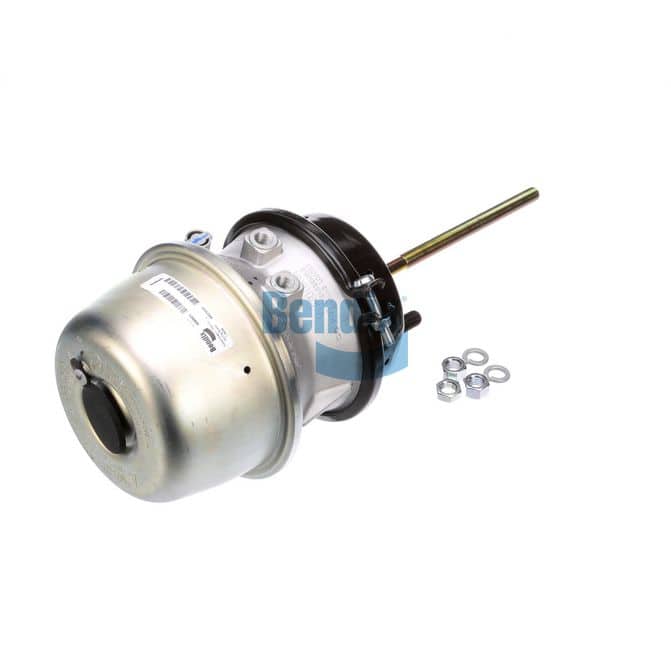

BENDIX-Spring Brake (S-Cam)
Part #: K093671|Brand: BENDIX|MPN #: K093671
BENDIX-Spring Brake (S-Cam)
Part #: K093671|Brand: BENDIX|MPN #: K093671
Not Found
For inventory inquiries, please contact your local branch at (214) 630-8360

  • 270 °
    5/8 in-18
    3.00 in
    5/8 in-11
    Yes
    36
    1.50 in
    Threaded
    4.75 in
    30
    8.00 in
    Chamber Style: Double Diaphragm
    3/8 in-18
    29.54 lb
    1.50 in
    Long
    Air

    • Brand : DiPro
    • Chamber Style : Double Diaphragm
    • Chamber Type / Size : T30/36
    • Clamp Angle : 45 deg
    • Clevis / Yoke Style : Threaded (Standard)
    • Maximum Operating Temperature : 175 deg F (79 deg C)
    • Minimum Operating Temperature : -40 deg F (-40 deg C)
    • Mounting Stud Length : 1.50 IN (38.1 MM)
    • Parking Port (12) : 3/8-18 NPTF
    • Port Angle : 270 deg
    • Push Rod Length (to Yoke Pin Center when Applicable) [IN] : 8.00
    • Push Rod Thread / Style : 5/8-18 UNF-2A
    • Service Chamber Joint Type : Double Clamp Band
    • Service Port (11) : 3/8-18 NPTF
    • Stroke : 3.00 IN (76 MM)
    • Stud Spacing : 4.75 IN (120.7 MM)
    • Stud Thread Size : 5/8-11 UNC-2A

  • K024631
