For inventory inquiries, please contact your local branch at (214) 630-8360- 1.48 inWelded30Drum45 °30Yes2.25 inDo not disassemble while park side is caged under pressure3/8 in-183.00 in5/8 in-114.75 in20.72 lbLong1.48 in

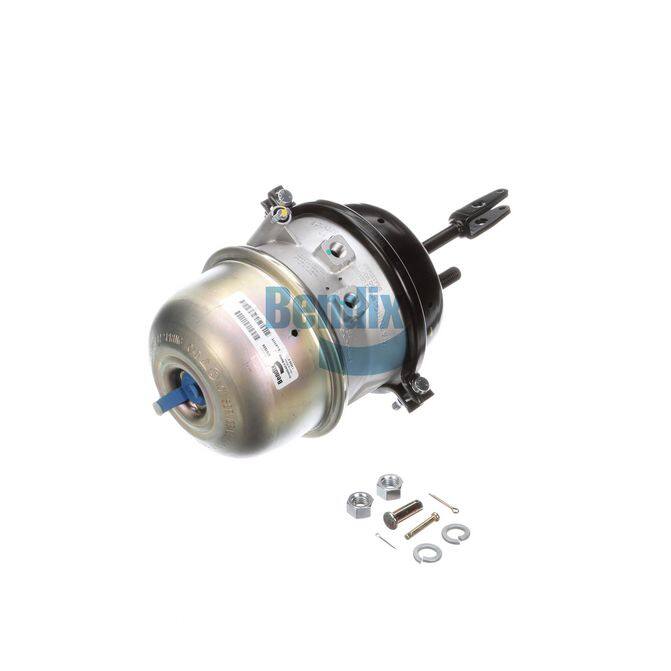

- Brand : EnduraSure
- Cautionary Note(s) : Do not disassemble while park side is caged under pressure
- Chamber Style : Double Diaphragm
- Chamber Type / Size : T30/30
- Clamp Angle : 315 deg
- Clevis / Yoke Arm Bushing Pin Diameter : A~ .50 IN (A~ 12.7 MM)
- Clevis / Yoke Arm Link Pin Diameter : A~ .25 IN (A~ 6.35 MM)
- Clevis / Yoke Pin Spacing : 1.30 IN (33 MM)
- Clevis / Yoke Style : Welded
- Maximum Operating Temperature : 175 deg F (79 deg C)
- Minimum Operating Temperature : -40 deg F (-40 deg C)
- Mounting Stud Length : 1.48 IN (37.5 MM)
- Parking Port (12) : 3/8-18 NPTF
- Port Angle : 45 deg
- Push Rod Length (to Yoke Pin Center when Applicable) [IN] : 2.25
- Service Chamber Joint Type : Double Clamp Band
- Service Port (11) : 3/8-18 NPTF
- Stroke : 3.00 IN (76 MM)
- Stud Spacing : 4.75 IN (120.7 MM)
- Stud Thread Size : 5/8-11 UNC-2A
