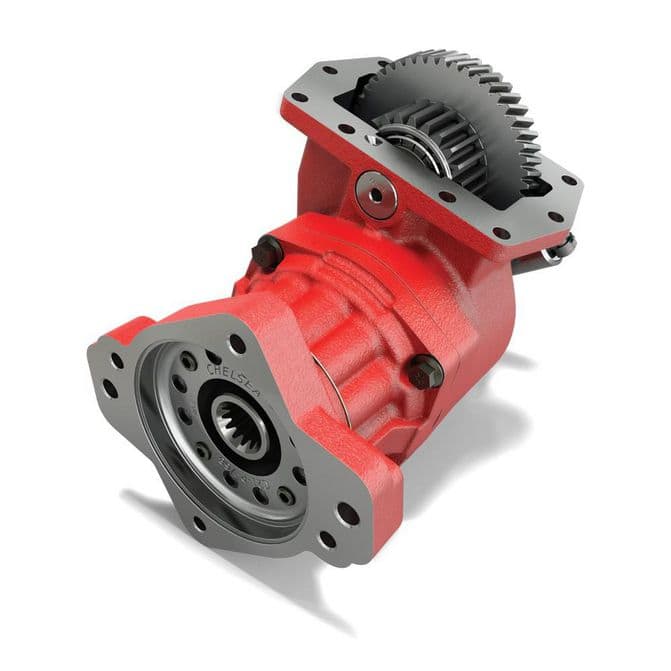

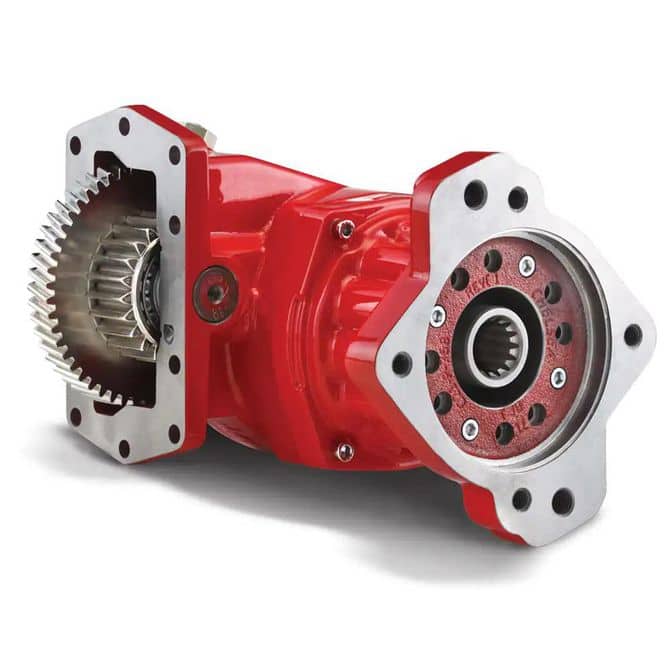

Chelsea PowerShift (Hydraulic) 10-Bolt Power Take-Off (PTO) - 871 Series
Part #: 871XAFJPB5XV|Brand: CHELSEA|MPN #: 871XAFJP-B5XV
Not Found
$5,244.99 / ea
Pickup
Not availableat Dallas, TX
Ready to ship PARCEL ELIGIBLE
Get it est. 19 Sep to 75247
  • Pressure
    56 lb
    10 Bolt
  • The 871 series PTO is a 10-point Power Take-Off featuring high capacity bearings and superior gear designs provide impressive torque ratings up to 670 ft-lb. There is no need to derate the PTO for continuous duty applications. Chelsea's 871 series replaces the 870 Series PTO. Upgraded features include a ductile iron bearing cap which is 117% stronger than its predecessor, and an o-ring sealing configuration between the housing and bearing cap to improve clamp load. All of these improvements are focused on improving the damaging vibrational effects caused by today's and future engine designs. Multiple gear ratios provide a wide variety of speeds to meet all of your application requirements. The 871 Series is a unique PTO in that it is the only Chelsea PTO to offer all 3 of Chelsea's high-demand solutions: Wet Spline, SmartStart, and Quiet Gear options.

    • Strong - Ductile iron bearing cap (117% stronger than gray iron)
    • Improved Seal - O-ring sealing configuration to reduce vibrational effects and improve clamp load
    • Power - Torque capacity up to 670 ft-lb / 908 N-m
    • Compact - Housing height reduces clearance issues
    • Quiet - Quiet Gear input option available
    • SmartStart - Option available to reduce shock load at start-up for certain applications
    • Insurance - Electronic Overspeed Control (EOC) protects driven equipment
    • Speeds - Nine speed ratios
    • Outputs - Thirteen output options
    • Protections - Wet Spline pump flange extends PTO and pump shaft life
