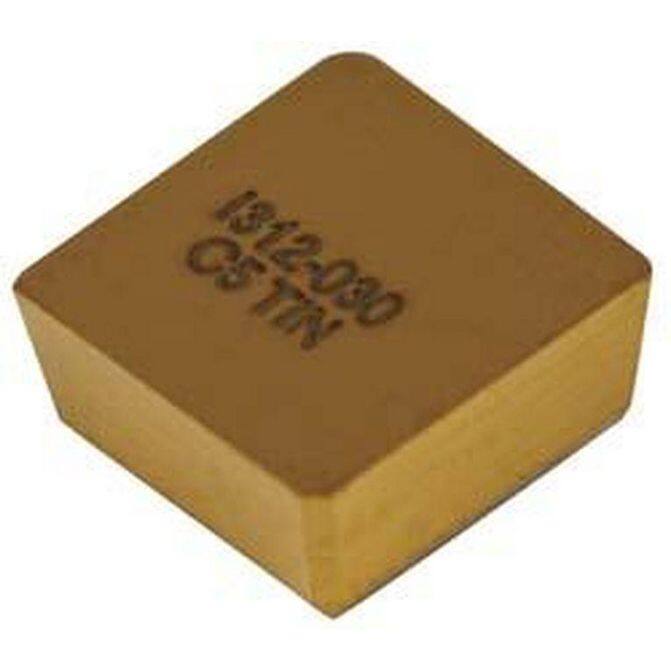

Product Details: Manufacturer Part Number: 1312-030 TIN|Insert Style|1312Insert Size|13Insert Material|Solid CarbideInsert Shape|SquareInscribed Circle (Inch)|5/16Manufacturer Grade|C5Corner Radius (Decimal Inch)|0.0300Corner Radius (mm)|Number Of Cutting Edges|4Thickness (Decimal Inch - 4 Decimals)|0.1250Thickness (mm)|Coating/Finish|TiNRelief Angle|Maximum Depth of Cut (Decimal Inch)|0.2852Maximum Depth of Cut (mm)|Insert Size Code|1312Material Grade|C5Width (Inch)|5/16Length (Inch)|5/16Thickness (Inch)|1/8Inscribed Circle (Decimal Inch)|0.3120Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.1250 to 0.1500Corner Radius (Inch)|Inscribed Circle Range (Decimal Inch)|0.3000 to 0.3500Length Range (Decimal Inch)|Insert Hand|NeutralSeries|1312Coating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|SteelPrimary Workpiece Material Code|PSecondary Workpiece Material|Stainless SteelSecondary Workpiece Material Code|MAnsi Code|1312-030Iso Code|1312-030Standards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|0Cutting Edge Style|Single SidedManufacturers Catalog Number|1312-030Cutter Series Compatibility|DASC; DSSC; W; TSC; KSChip Breaker|Flat TopCutting Direction|Material Application|SteelUNSPSC Code|Shape|Length of Cut (mm)|Insert Holding Method|WedgeProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|Width (Decimal Inch - 4 Decimals)|0.3120Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.3120System Of Measurement|
