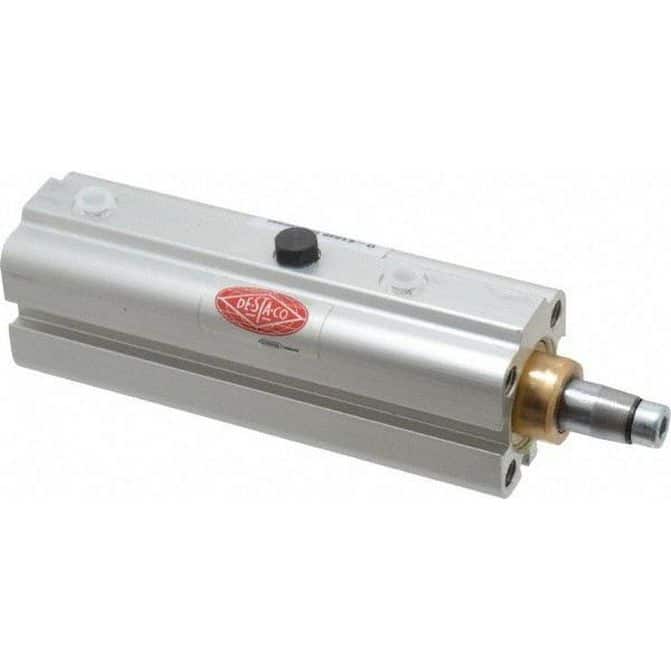

Manufacturer Part Number: 89R20-010-2|Operation Type|AirAction Type|SingleSwing Direction|Adjustable (Right, Left, Straight)Clamping Force (Lb.)|22.00Clamping Force (kg)|Clamping Force (N)|97.86Operating Volume (cc)|4.90 (Clamp); 6.60 (Unclamp)Operating Volume (Cu. In.)|Load Capacity (Lb. - 3 Decimals)|Effective Clamping Area (Sq.In.)|Effective Clamping Area (sq cm)|Mount Type|FlangeTotal Stroke Distance (mm)|21.00Total Stroke Distance (Decimal Inch)|0.8300Body Length (Decimal Inch)|4.1500Body Length|105.41Body Diameter (Decimal Inch)|0.7900Body Diameter (mm)|20.07Vertical Stroke Distance (Decimal Inch)|0.3900Vertical Stroke Distance (mm)|10.00Vertical Stroke Distance (Inch)|Rod Diameter (mm)|9.91Rod Diameter (Decimal Inch)|0.3900Arm Length (mm)|8.13Arm Length (Decimal Inch - 4 Decimals)|0.3200Clamp Arm Compatibility|8JG-215-1 Standard Clamping Arm; 8MA-084-1 Blank Clamping ArmBody Thread Size|Maximum Operating Pressure (bar)|10.00Body Width/Diameter (mm)|20.07Body Width/Diameter (Decimal Inch)|0.7900Maximum Operating Pressure (psi)|145Maximum Operating Pressure (PSIG)|145Minimum Operating Pressure (PSIG)|30Minimum Operating Pressure (bar)|2.07Minimum Operating Pressure (psi)|Port Size|M5Includes|Features|Robust Design; Sensor ReadyEffective Unclamping Area (Sq. In.)|Mounting Hole Thread Size|M6Base Width|32.00Distance Between Mounting Holes Lengthwise|22.00Height (mm)|Rod Thread Size|M5Overall Open Length (mm)|Bin|F (mm)|G (In)|H|J (In)|K (In)|N (In)|B (mm)|C (mm)|D (mm)|E (mm)|M (In)|Q (In)|H (mm)|M (mm)|P (In)|G (mm)|C (In)|Tapped Depth|Overall Open Length (Decimal Inch)|Stem Diameter|Travel Length|11.00Product Service Code|UNSPSC Code|27112100E (in)|W2 (mm)|Base Radius (In)|D -In--|Overall Length (Decimal Inch)|Width Distance Between Mount Holes|22.00mmBase Length (mm)|39.50F -In--|Overall Length (Inch)|
