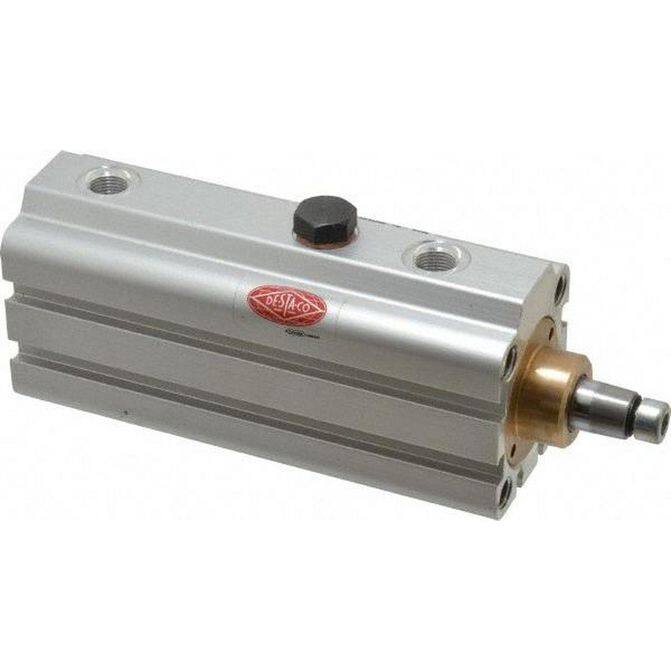

Manufacturer Part Number: 89R32-010-2|Operation Type|AirAction Type|SingleSwing Direction|Adjustable (Right, Left, Straight)Clamping Force (Lb.)|67.00Clamping Force (kg)|Clamping Force (N)|298.03Operating Volume (cc)|19.40 (Clamp); 22.50 (Unclamp)Operating Volume (Cu. In.)|Load Capacity (Lb. - 3 Decimals)|Effective Clamping Area (Sq.In.)|Effective Clamping Area (sq cm)|Mount Type|FlangeTotal Stroke Distance (mm)|28.00Total Stroke Distance (Decimal Inch)|1.1000Body Length (Decimal Inch)|4.9200Body Length|124.97Body Diameter (Decimal Inch)|1.2600Body Diameter (mm)|32.00Vertical Stroke Distance (Decimal Inch)|0.3900Vertical Stroke Distance (mm)|10.00Vertical Stroke Distance (Inch)|Rod Diameter (mm)|11.94Rod Diameter (Decimal Inch)|0.4700Arm Length (mm)|10.92Arm Length (Decimal Inch - 4 Decimals)|0.4300Clamp Arm Compatibility|8JG-217-1 Standard Clamping Arm; 8MA-086-1 Blank Clamping ArmBody Thread Size|Maximum Operating Pressure (bar)|10.00Body Width/Diameter (mm)|32.00Body Width/Diameter (Decimal Inch)|1.2600Maximum Operating Pressure (psi)|145Maximum Operating Pressure (PSIG)|145Minimum Operating Pressure (PSIG)|30Minimum Operating Pressure (bar)|2.07Minimum Operating Pressure (psi)|Port Size|G1/8Includes|Features|Robust Design; Sensor ReadyEffective Unclamping Area (Sq. In.)|Mounting Hole Thread Size|M8Base Width|45.00Distance Between Mounting Holes Lengthwise|36.00Height (mm)|Rod Thread Size|M6Overall Open Length (mm)|Bin|F (mm)|G (In)|H|J (In)|K (In)|N (In)|B (mm)|C (mm)|D (mm)|E (mm)|M (In)|Q (In)|H (mm)|M (mm)|P (In)|G (mm)|C (In)|Tapped Depth|Overall Open Length (Decimal Inch)|Stem Diameter|Travel Length|18.00Product Service Code|UNSPSC Code|27112100E (in)|W2 (mm)|Base Radius (In)|D -In--|Overall Length (Decimal Inch)|Width Distance Between Mount Holes|32.00mmBase Length (mm)|60.00F -In--|Overall Length (Inch)|
