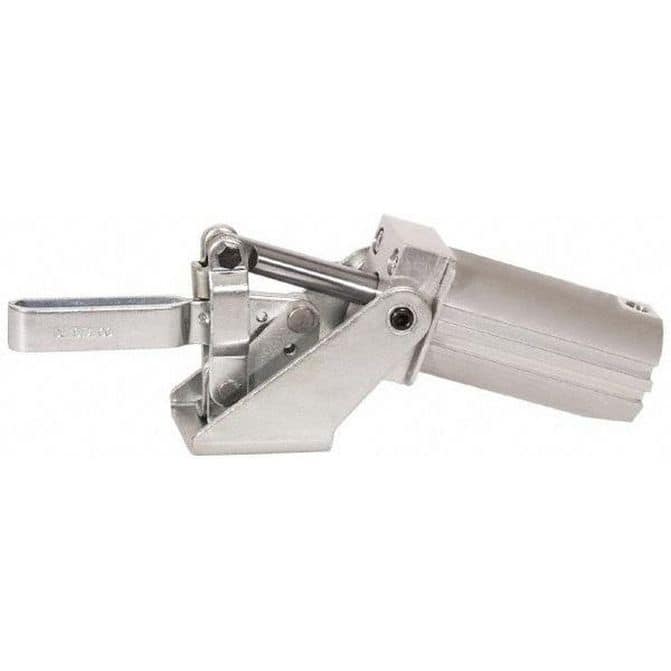

Manufacturer Part Number: 846|Power Type|PneumaticMinimum Air Requirement|Bar End Type|OpenHolding Capacity - Inner (kg)|Holding Capacity - Inner (N)|3340.00Holding Capacity - Inner (Lb.)|750.00Bar Extension|Bar Extension (Decimal Inch)|2.1900Bar Extension (mm)|55.63Bar Extension (Inch)|Bar Opening (Degrees)|97Bar Style|U-BarInner Clamping Force|Cylinder Bore Size (Decimal Inch)|Cylinder Bore Size|Cylinder Bore Size (mm)|Height Under Bar (mm)|40.89Height Under Bar (Decimal Inch)|1.6100Height Under Bar (Inch)|Inner Holding Capacity|Length Distance Between Mount Holes (Decimal Inch)|1.0000Length Distance Between Mount Holes (Inch)|Length Distance Between Mount Holes (mm)|25.40Maximum Air Pressure (bar)|4.76Maximum Air Pressure (psig)|69.00Maximum Mechanical Advantage|5.6:3.5Mounting Hole Size (Decimal Inch)|0.3000Mounting Hole Size (mm)|7.62Mounting Orientation|HorizontalOuter Clamping Force (Lb.)|405.00Outer Clamping Force (N)|1800.00Outer Load Capacity (Lb.)|405.00Outer Load Capacity (N)|1800.00Overall Closed Height (mm)|83.90Overall Closed Height (Inch)|Overall Closed Height (Decimal Inch)|3.3000Overall Closed Length (mm)|262.30Overall Closed Length (Inch)|Overall Closed Length (Decimal Inch)|10.3300Overall Open Height (Decimal Inch)|5.5400Overall Open Height (Inch)|Overall Open Height (mm)|140.80Overall Open Length (mm)|Overall Open Length (Decimal Inch)|Sensor Compatibility|Spindle Thread Size|Width Distance Between Mount Holes (Inch)|Width Distance Between Mount Holes (Decimal Inch)|1.5000Width Distance Between Mount Holes (mm)|38.10Mount Type|UNSPSC Code|31162900Body Material|Port Size|1/8 NPTIncludes|SpindleAir Requirement (psi)|Maximum Clamping Torque at 72 psig (Lb.)|Manufacturer's Part Number|Maximum Additional Weight at Clamp Arm Mounted in Position X|Industry Number|846Overall Length (Decimal Inch)|10.8000C-Projection Gage Line to Nose End|Bin|F (mm)|G (In)|H|J (In)|K (In)|N (In)|D (mm)|E (mm)|M (In)|No Description|H (mm)|M (mm)|P (In)|G (mm)|No Description|No Description|Minimum Operating Temperature F|14F -In--|Maximum Operating Temperature F|194D -In--|Minimum Operating Temperature C|-10Maximum Operating Temperature C|90
