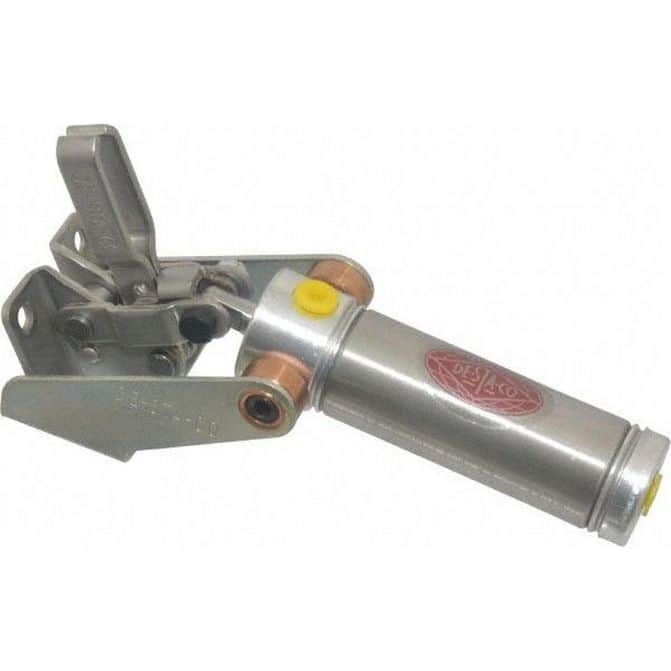

Manufacturer Part Number: 812-U|Power Type|PneumaticMinimum Air Requirement|Bar End Type|OpenHolding Capacity - Inner (kg)|Holding Capacity - Inner (N)|440.00Holding Capacity - Inner (Lb.)|100.00Bar Extension|Bar Extension (Decimal Inch)|1.0200Bar Extension (mm)|25.91Bar Extension (Inch)|Bar Opening (Degrees)|99Bar Style|SolidInner Clamping Force|Cylinder Bore Size (Decimal Inch)|0.7500Cylinder Bore Size|Cylinder Bore Size (mm)|19.05Height Under Bar (mm)|17.27Height Under Bar (Decimal Inch)|0.6800Height Under Bar (Inch)|Inner Holding Capacity|Length Distance Between Mount Holes (Decimal Inch)|0.6300Length Distance Between Mount Holes (Inch)|Length Distance Between Mount Holes (mm)|16.00Maximum Air Pressure (bar)|17.24Maximum Air Pressure (psig)|250.00Maximum Mechanical Advantage|2.9:1; 4.3:1Mounting Hole Size (Decimal Inch)|0.1700Mounting Hole Size (mm)|4.32Mounting Orientation|HorizontalOuter Clamping Force (Lb.)|92.00Outer Clamping Force (N)|413.00Outer Load Capacity (Lb.)|55.00Outer Load Capacity (N)|245.00Overall Closed Height (mm)|39.60Overall Closed Height (Inch)|Overall Closed Height (Decimal Inch)|1.5600Overall Closed Length (mm)|142.00Overall Closed Length (Inch)|Overall Closed Length (Decimal Inch)|5.5900Overall Open Height (Decimal Inch)|2.7600Overall Open Height (Inch)|Overall Open Height (mm)|70.00Overall Open Length (mm)|116.10Overall Open Length (Decimal Inch)|4.5700Sensor Compatibility|Spindle Thread Size|Width Distance Between Mount Holes (Inch)|Width Distance Between Mount Holes (Decimal Inch)|0.9400Width Distance Between Mount Holes (mm)|23.88Mount Type|UNSPSC Code|31162900Body Material|Port Size|M5Includes|Flat-Tip Bonded Neoprene SpindleAir Requirement (psi)|Maximum Clamping Torque at 72 psig (Lb.)|Manufacturer's Part Number|Maximum Additional Weight at Clamp Arm Mounted in Position X|Industry Number|Overall Length (Decimal Inch)|C-Projection Gage Line to Nose End|Bin|F (mm)|G (In)|H|1.0600J (In)|0.1700K (In)|0.6900N (In)|D (mm)|E (mm)|M (In)|No Description|H (mm)|M (mm)|P (In)|G (mm)|No Description|No Description|Minimum Operating Temperature F|-10F -In--|Maximum Operating Temperature F|165D -In--|0.6300Minimum Operating Temperature C|-23Maximum Operating Temperature C|73
