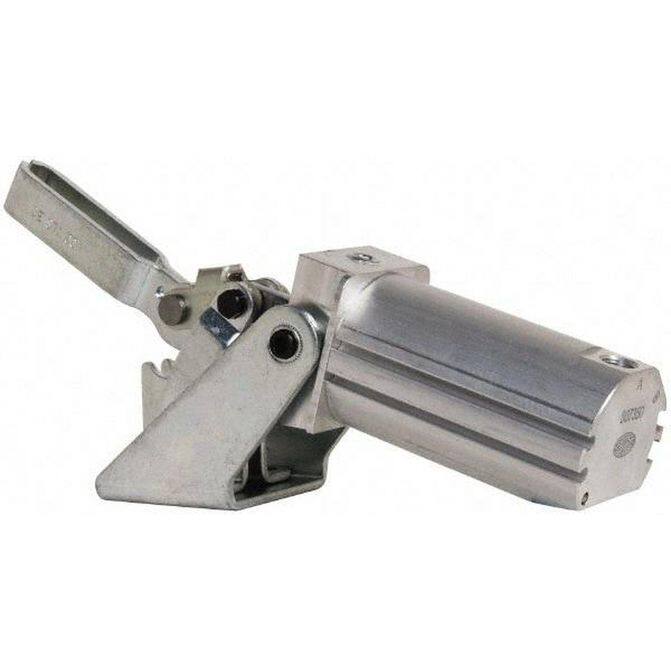

Manufacturer Part Number: 807-U|Power Type|PneumaticMinimum Air Requirement|Bar End Type|OpenHolding Capacity - Inner (kg)|Holding Capacity - Inner (N)|1670.00Holding Capacity - Inner (Lb.)|375.00Bar Extension|Bar Extension (Decimal Inch)|2.5100Bar Extension (mm)|63.75Bar Extension (Inch)|Bar Opening (Degrees)|103Bar Style|SolidInner Clamping Force|Cylinder Bore Size (Decimal Inch)|1.2600Cylinder Bore Size|Cylinder Bore Size (mm)|32.00Height Under Bar (mm)|35.05Height Under Bar (Decimal Inch)|1.3800Height Under Bar (Inch)|Inner Holding Capacity|Length Distance Between Mount Holes (Decimal Inch)|0.7500Length Distance Between Mount Holes (Inch)|Length Distance Between Mount Holes (mm)|19.05Maximum Air Pressure (bar)|10.00Maximum Air Pressure (psig)|145.00Maximum Mechanical Advantage|2:1; 6:1Mounting Hole Size (Decimal Inch)|0.2800Mounting Hole Size (mm)|7.11Mounting Orientation|HorizontalOuter Clamping Force (Lb.)|297.00Outer Clamping Force (N)|1327.00Outer Load Capacity (Lb.)|275.00Outer Load Capacity (N)|1220.00Overall Closed Height (mm)|76.30Overall Closed Height (Inch)|Overall Closed Height (Decimal Inch)|3.0000Overall Closed Length (mm)|237.10Overall Closed Length (Inch)|Overall Closed Length (Decimal Inch)|9.3300Overall Open Height (Decimal Inch)|5.8300Overall Open Height (Inch)|Overall Open Height (mm)|148.20Overall Open Length (mm)|173.50Overall Open Length (Decimal Inch)|6.8200Sensor Compatibility|Round; T-SlotSpindle Thread Size|Width Distance Between Mount Holes (Inch)|Width Distance Between Mount Holes (Decimal Inch)|1.2500Width Distance Between Mount Holes (mm)|31.75Mount Type|UNSPSC Code|31162900Body Material|Port Size|1/8 NPTIncludes|Flat WasherAir Requirement (psi)|Maximum Clamping Torque at 72 psig (Lb.)|Manufacturer's Part Number|Maximum Additional Weight at Clamp Arm Mounted in Position X|Industry Number|Overall Length (Decimal Inch)|C-Projection Gage Line to Nose End|Bin|F (mm)|G (In)|H|J (In)|K (In)|2.0300N (In)|D (mm)|E (mm)|M (In)|No Description|H (mm)|M (mm)|P (In)|G (mm)|No Description|No Description|Minimum Operating Temperature F|14F -In--|Maximum Operating Temperature F|194D -In--|Minimum Operating Temperature C|-10Maximum Operating Temperature C|90
