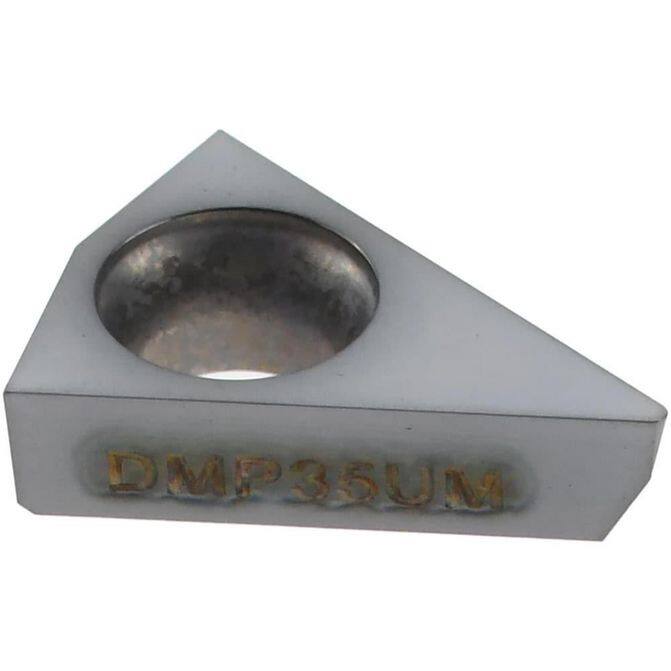

Manufacturer Part Number: 73310195493|Insert Style|TDEXInsert Size|09Insert Material|Solid CarbideInsert Shape|TriangleInscribed Circle (Inch)|Manufacturer Grade|DMP35UMCorner Radius (Decimal Inch)|0.0080Corner Radius (mm)|0.20Number Of Cutting Edges|Thickness (Decimal Inch - 4 Decimals)|0.0940Thickness (mm)|2.39Coating/Finish|Relief Angle|11.00Maximum Depth of Cut (Decimal Inch)|Maximum Depth of Cut (mm)|Insert Size Code|090202Material Grade|S35; M35Width (Inch)|Length (Inch)|Thickness (Inch)|3/32Inscribed Circle (Decimal Inch)|0.3740Inscribed Circle (mm)|9.50Thickness Range (Decimal Inch)|0.0000 to 0.1000Corner Radius (Inch)|Inscribed Circle Range (Decimal Inch)|0.3500 to 0.4000Length Range (Decimal Inch)|Insert Hand|NeutralSeries|TDEXCoating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|0.11Hole Diameter (Decimal Inch)|0.1118Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Superalloys & Titanium; Stainless SteelPrimary Workpiece Material Code|S; MSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|TDEX-090202-XDEN-DMP35UMIso Code|TDEX-090202-XDEN-DMP35UMStandards|Convex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|Manufacturers Catalog Number|TDEX-090202-XDEN-DMP35UMCutter Series Compatibility|Chip Breaker|DMPCutting Direction|Material Application|High-Temperature Alloy; Stainless SteelUNSPSC Code|23291601Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|SingleIncluded Angle Degree|45Length (mm)|6.50Width (Decimal Inch - 4 Decimals)|0.2559Width (mm - 2 Decimals)|6.50Multi-Use Tool|Length (Decimal Inch - 4 Decimals)|0.2559System Of Measurement|Metric
