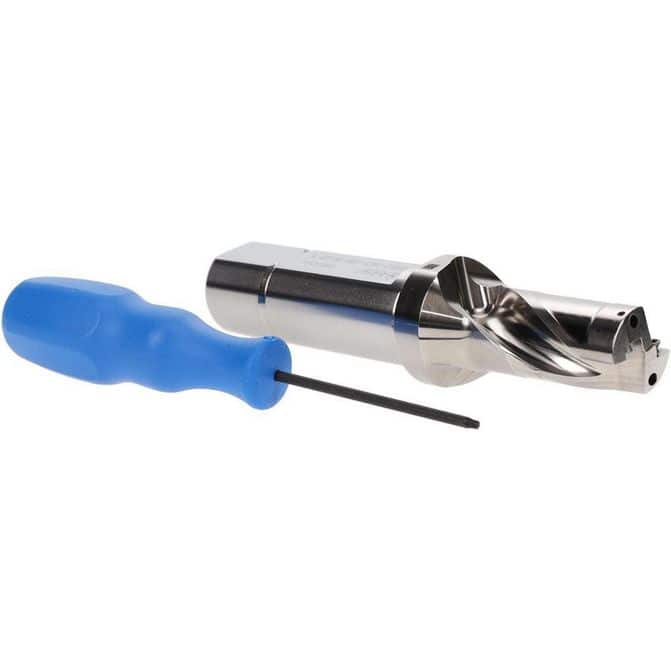

Manufacturer Part Number: 3201392|Compatible Drill Style|DRMaximum Drill Diameter (mm)|Maximum Drill Diameter (Inch)|13/16Drill Diameter (Decimal Inch)|0.8125Maximum Drill Diameter (Decimal Inch)|0.8500Drill Diameter (Inch)|13/16Drill Diameter (mm)|Maximum Drill Depth (Inch)|Maximum Drill Depth (Decimal Inch)|1.6300Maximum Drill Depth (mm)|Taper Size|Shank Type|Straight-CylindricalShank Diameter (Inch)|1Shank Diameter (Decimal Inch)|1.0000Shank Diameter (mm)|Number of Drill Inserts|2Drill Diameter Range (Decimal Inch)|0.7500 to 1.0000Cutting Direction|Maximum Drill Depth Range (Decimal Inch)|1.0000 to 2.0000Maximum Drill Depth Range (mm)|Tool Material|Compatible Insert Style|SOMXCompatible Insert Size Code|06Drill Depth by Diameter Ratio|2xDCoolant Entry Style Code|Overall Length (Decimal Inch)|Overall Length (mm)|Overall Length (Inch)|Series|DR-TWISTFlute Length (Decimal Inch)|Flute Length (mm)|Body Length|Body Length (Decimal Inch)|2.4900Shank Length (Decimal Inch)|3.0000Shank Length (mm)|Neck Diameter (Inch)|1.2600Neck Diameter (mm)|Modular Connection Size|1 inCoolant Hole Thread Size|1/16-27Minimum Achievable Hole Tolerance|-0.0020inMaximum Achievable Hole Tolerance|0.0060inTool Application|HolemakingTool Performance|General PurposeStandards|Insert Size (Decimal Inch)|Insert Size (mm)|Overall Length/Projection (Decimal Inch)|5.4900Overall Length/Projection (mm)|Insert Compatibility (Outside or Peripheral)|Product Service Code|UNSPSC Code|Insert Compatibility|SOGX-AL; SOMX-DT; SOMX-GFCollar Diameter (Decimal Inch)|1.2600Collar Diameter (mm)|Radius (Decimal Inch)|Radial Adjustment (-mm)|Body Side Coolant Hole Thread Size (Inch)|1/16-27End Connections|Shank End Coolant Hole Thread Size (Inch)|3/8-18Coating Classification|MSC/Manufacturer Number|Radial Adjustment (+Decimal Inch)|Insert Lock Screw|Included Angle Degree|Extension From Holder (Inch)|Coolant Through|Yes
