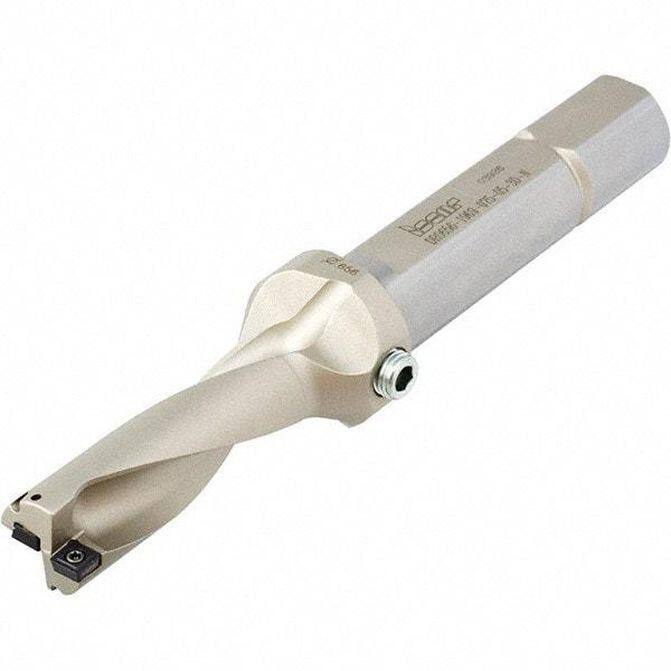

Manufacturer Part Number: 3201398|Compatible Drill Style|DRMaximum Drill Diameter (mm)|Maximum Drill Diameter (Inch)|27/32Drill Diameter (Decimal Inch)|0.8438Maximum Drill Diameter (Decimal Inch)|0.9720Drill Diameter (Inch)|27/32Drill Diameter (mm)|Maximum Drill Depth (Inch)|Maximum Drill Depth (Decimal Inch)|2.5300Maximum Drill Depth (mm)|Taper Size|Shank Type|Straight-CylindricalShank Diameter (Inch)|1Shank Diameter (Decimal Inch)|1.0000Shank Diameter (mm)|Number of Drill Inserts|Drill Diameter Range (Decimal Inch)|0.7500 to 1.0000Cutting Direction|Maximum Drill Depth Range (Decimal Inch)|2.0000 to 3.0000Maximum Drill Depth Range (mm)|Tool Material|Compatible Insert Style|SOMXCompatible Insert Size Code|070305-DTDrill Depth by Diameter Ratio|3xDCoolant Entry Style Code|Overall Length (Decimal Inch)|Overall Length (mm)|Overall Length (Inch)|Series|DR-TWISTFlute Length (Decimal Inch)|Flute Length (mm)|Body Length|Body Length (Decimal Inch)|3.4000Shank Length (Decimal Inch)|3.0000Shank Length (mm)|Neck Diameter (Inch)|1.2600Neck Diameter (mm)|Modular Connection Size|1 inCoolant Hole Thread Size|3/8-18 NPTMinimum Achievable Hole Tolerance|-0.0020inMaximum Achievable Hole Tolerance|0.0090inTool Application|HolemakingTool Performance|General PurposeStandards|Insert Size (Decimal Inch)|Insert Size (mm)|Overall Length/Projection (Decimal Inch)|6.4000Overall Length/Projection (mm)|Insert Compatibility (Outside or Peripheral)|Product Service Code|UNSPSC Code|Insert Compatibility|SOGX-AL; SOMX-DT; SOMX-GF; SOMX-HDCollar Diameter (Decimal Inch)|1.2600Collar Diameter (mm)|Radius (Decimal Inch)|Radial Adjustment (-mm)|Body Side Coolant Hole Thread Size (Inch)|End Connections|Shank End Coolant Hole Thread Size (Inch)|Coating Classification|MSC/Manufacturer Number|Radial Adjustment (+Decimal Inch)|Insert Lock Screw|Included Angle Degree|Extension From Holder (Inch)|Coolant Through|Yes
