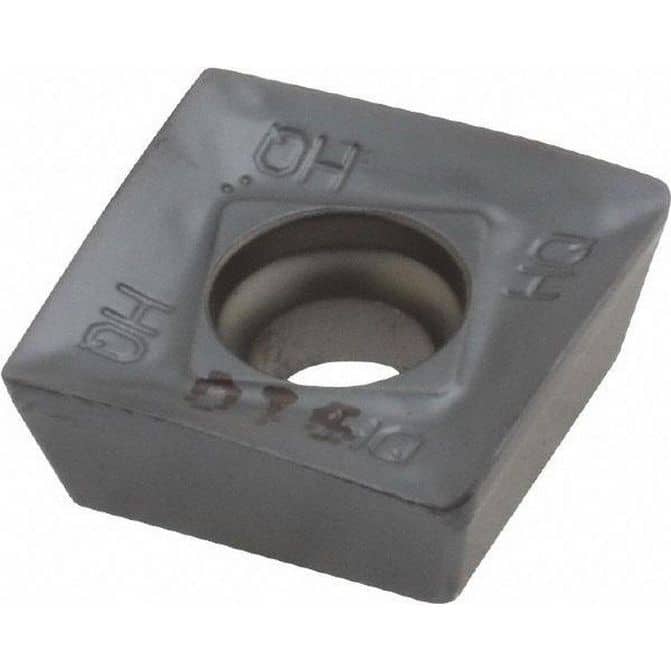

Manufacturer Part Number: 5603672|Insert Style|SDMTInsert Size|12Insert Material|Solid CarbideInsert Shape|SquareInscribed Circle (Inch)|1/2Manufacturer Grade|IC910Corner Radius (Decimal Inch)|0.0315Corner Radius (mm)|0.80Number Of Cutting Edges|4Thickness (Decimal Inch - 4 Decimals)|0.1970Thickness (mm)|Coating/Finish|AlTiNRelief Angle|15Maximum Depth of Cut (Decimal Inch)|0.3940Maximum Depth of Cut (mm)|Insert Size Code|1205Material Grade|C2; C3; C6Width (Inch)|1/2Length (Inch)|1/2Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.5000Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.1850 to 0.2000Corner Radius (Inch)|1/32Inscribed Circle Range (Decimal Inch)|0.5000 to 0.5100Length Range (Decimal Inch)|0.5000 to 0.6000Insert Hand|NeutralSeries|HELIQUADCoating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|0.4685Rake|PositivePrimary Workpiece Material|Steel; Cast IronPrimary Workpiece Material Code|P; KSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|SDMT 1205PDR-HQ-M IC910Iso Code|SDMT 1205PDR-HQ-MStandards|ANSI; ISO 13399Convex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|HelicalManufacturers Catalog Number|SDMT 1205PDR-HQ-M IC910Cutter Series Compatibility|SDK; F90SD-12Chip Breaker|HQCutting Direction|Material Application|Steel; Cast IronUNSPSC Code|Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|Width (Decimal Inch - 4 Decimals)|0.5000Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.5000System Of Measurement|
