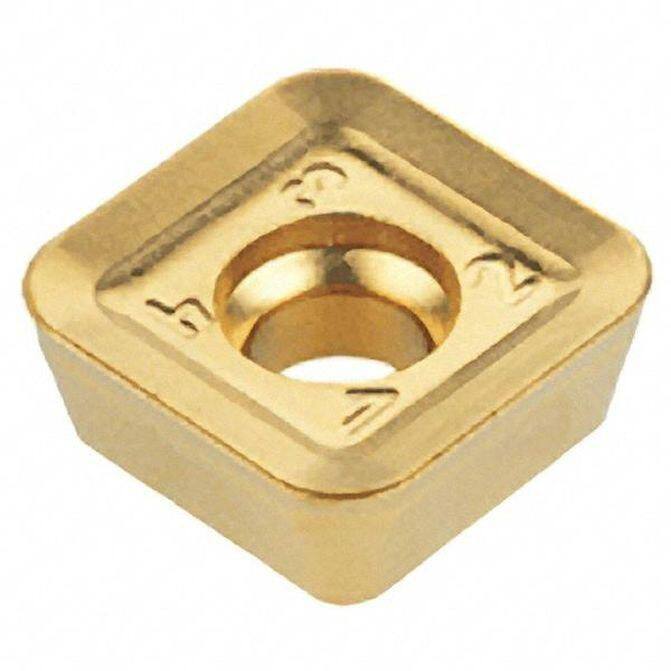

Manufacturer Part Number: 5603750|Insert Style|QDMTInsert Size|12Insert Material|Solid CarbideInsert Shape|SquareInscribed Circle (Inch)|1/2Manufacturer Grade|IC910Corner Radius (Decimal Inch)|0.1260Corner Radius (mm)|3.20Number Of Cutting Edges|4Thickness (Decimal Inch - 4 Decimals)|0.1970Thickness (mm)|Coating/Finish|AlTiNRelief Angle|15Maximum Depth of Cut (Decimal Inch)|0.3940Maximum Depth of Cut (mm)|Insert Size Code|120532Material Grade|Width (Inch)|1/2Length (Inch)|1/2Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.5000Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.1850 to 0.2000Corner Radius (Inch)|Inscribed Circle Range (Decimal Inch)|0.5000 to 0.5100Length Range (Decimal Inch)|0.5000 to 0.6000Insert Hand|NeutralSeries|HELIQUADCoating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|0.3740Rake|PositivePrimary Workpiece Material|Steel; Cast IronPrimary Workpiece Material Code|P; KSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|QDMT 120532PDTN-M IC910Iso Code|QDMT 120532PDTN-MStandards|ANSI; ISO 13399Convex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|22Cutting Edge Style|T-LandManufacturers Catalog Number|QDMT 120532PDTN-M IC910Cutter Series Compatibility|FDN; FST; SDN; SSB; SDK; F90SDChip Breaker|MCutting Direction|Material Application|Steel; Cast IronUNSPSC Code|Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|Width (Decimal Inch - 4 Decimals)|0.5000Width (mm - 2 Decimals)|12.70Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.5000System Of Measurement|
