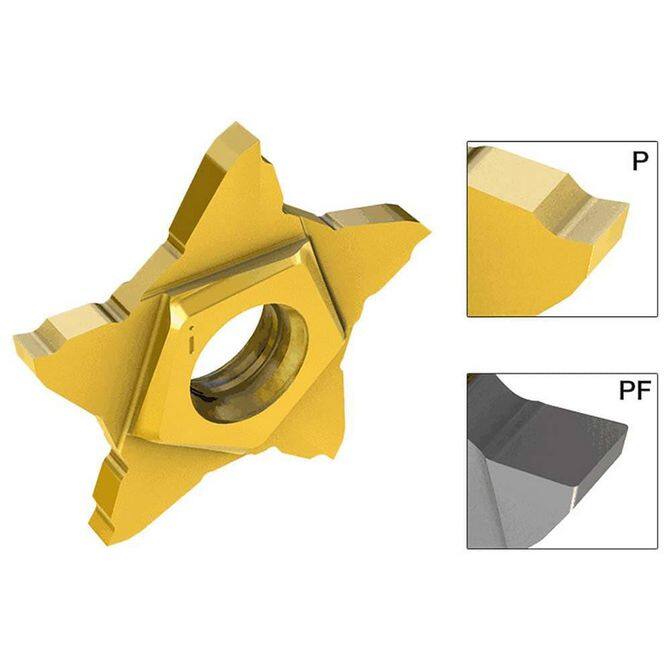

Manufacturer Part Number: 3334952|Insert Style|PENTAInsert Size Code|24N050PF005Cutting Width (Decimal Inch)|0.0200Cutting Width (mm)|0.50Insert Hand|NeutralMaximum Depth of Cut (Decimal Inch)|0.0980Maximum Depth of Cut (mm)|2.50Insert Material|Solid CarbideManufacturer Grade|IC30NFull Radius|Corner Radius (Decimal Inch)|0.0020Corner Radius (mm)|0.05Number Of Cutting Edges|Rake|PositiveInsert Holding Method|Face Grooving|Insert Size|24N050Material Grade|Cutting Width (Inch)|Maximum Depth of Cut (Inch)|Cutting Height (mm)|Cutting Height (Inch)|Maximum Depth Of Cut Range (Decimal Inch)|0.0750 to 0.1000Cutting Height (Decimal Inch)|Maximum Depth Of Cut Range (mm)|2.00 to 3.00Corner Radius (Inch)|Lead Angle|Multi-use Tool|YesSeries|PentaCutCoating Process|Rake Angle|7.00Overall Length (Decimal Inch)|Overall Length (Inch)|Overall Length (mm)|Primary Workpiece Material|Hard Material; Stainless Steel; SteelPrimary Workpiece Material Code|H; M; PSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|Iso Code|PENTA 24N050PF005 IC30NStandards|ISO 13399Relief Angle|Maximum Corner Radius (Decimal Inch)|0.0020Minimum Corner Radius (Decimal Inch)|Manufacturers Catalog Number|3334952Overall Width (Inch)|Insert Thickness (Decimal Inch)|External Relief Angle|Internal Relief Angle|Cut Condition|UNSPSC Code|Minimum Groove Width (mm)|Inscribed Circle (Decimal Inch)|Thickness (Inch)|Type|Maximum Groove Width (mm)|Minimum Insert Width (mm)|Chip Breaker|PFInsert Seat Size|Inscribed Circle (Inch)|MSC/Manufacturer Number|Style|Inscribed Circle (mm)|Insert Height (Decimal Inch)|Gage Diameter (Decimal Inch)|Coating Classification|Hole Diameter (Decimal Inch)|Gage Diameter (Inch)|Overall Width (mm)|Overall Width (Decimal Inch - 4 Decimals)|Included Angle Degree|Coating/Finish|Bright/UncoatedMaximum Hole Depth (mm)|Single Or Double End|Projection (mm)|Groove Width (mm)|For Use With|Insert Thickness|Minimum Hole Diameter (mm)|Hole Diameter (Mm) ( - 0 Decimals)|Product Service Code|
