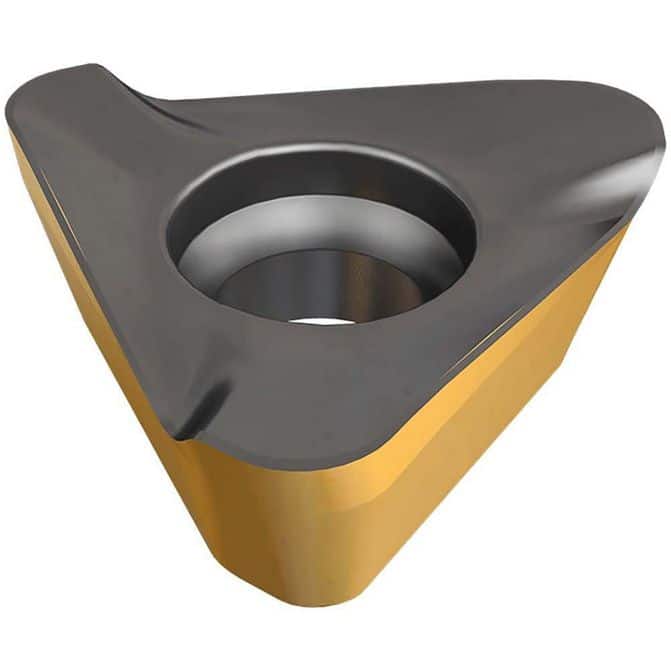

Manufacturer Part Number: 3313135|Insert Style|TDCRInsert Size|15Insert Material|Solid CarbideInsert Shape|TriangleInscribed Circle (Inch)|Manufacturer Grade|IC28Corner Radius (Decimal Inch)|0.0787Corner Radius (mm)|2.00Number Of Cutting Edges|3Thickness (Decimal Inch - 4 Decimals)|0.2360Thickness (mm)|6.00Coating/Finish|Bright/UncoatedRelief Angle|15.00Maximum Depth of Cut (Decimal Inch)|0.5118Maximum Depth of Cut (mm)|13.00Insert Size Code|150520Material Grade|Width (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.4488Inscribed Circle (mm)|11.40Thickness Range (Decimal Inch)|0.2350 to 0.2500Corner Radius (Inch)|Inscribed Circle Range (Decimal Inch)|0.4000 to 0.5000Length Range (Decimal Inch)|0.6000 to 0.6500Insert Hand|Right HandSeries|HELI3MILLCoating Process|UncoatedHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|0.5513Rake|PositivePrimary Workpiece Material|Non-Ferrous MetalPrimary Workpiece Material Code|NSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|HM390 TDCR 150520PDFR-P IC28Iso Code|HM390 TDCR 150520PDFR-PStandards|ANSI; ISO 13399Convex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|HelicalManufacturers Catalog Number|HM390 TDCR 150520PDFR-P IC28Cutter Series Compatibility|HM390-15Chip Breaker|PCutting Direction|Material Application|Non-Ferrous MetalUNSPSC Code|23291601Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|UncoatedSingle or Double Sided Insert|SingleIncluded Angle Degree|60Length (mm)|16.00Width (Decimal Inch - 4 Decimals)|0.6300Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.6300System Of Measurement|
