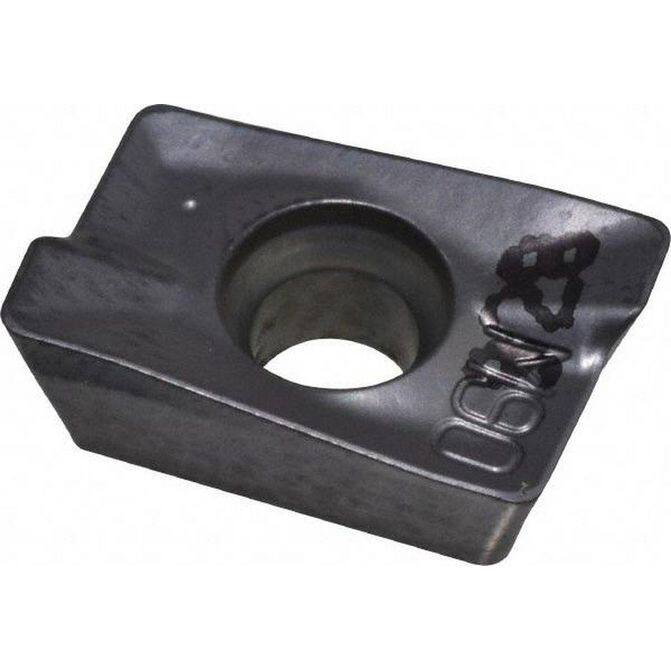

Manufacturer Part Number: 5602495|Insert Style|ADKTInsert Size|15Insert Material|Solid CarbideInsert Shape|ParallelogramInscribed Circle (Inch)|Manufacturer Grade|IC928Corner Radius (Decimal Inch)|0.0315Corner Radius (mm)|0.80Number Of Cutting Edges|2Thickness (Decimal Inch - 4 Decimals)|0.2300Thickness (mm)|Coating/Finish|TiAlNRelief Angle|15Maximum Depth of Cut (Decimal Inch)|0.4720Maximum Depth of Cut (mm)|12.00Insert Size Code|1505Material Grade|C1; C2; C5; C6Width (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.3800Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.2200 to 0.2350Corner Radius (Inch)|1/32Inscribed Circle Range (Decimal Inch)|0.3500 to 0.4000Length Range (Decimal Inch)|0.6000 to 0.6500Insert Hand|Right HandSeries|HELI2000Coating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|0.5710Rake|PositivePrimary Workpiece Material|Steel; Stainless Steel; Superalloys & TitaniumPrimary Workpiece Material Code|P; M; SSecondary Workpiece Material|Secondary Workpiece Material Code|SAnsi Code|HM90 ADKT 1505PDR IC928Iso Code|HM90 ADKT 1505PDRStandards|ANSI; ISO 13399Convex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|HonedManufacturers Catalog Number|HM90 ADKT 1505PDR IC928Cutter Series Compatibility|HM90-15Chip Breaker|PDRCutting Direction|Material Application|Steel; Stainless Steel; Superalloys & TitaniumUNSPSC Code|Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|SingleIncluded Angle Degree|85Length (mm)|Width (Decimal Inch - 4 Decimals)|0.3800Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.6370System Of Measurement|
