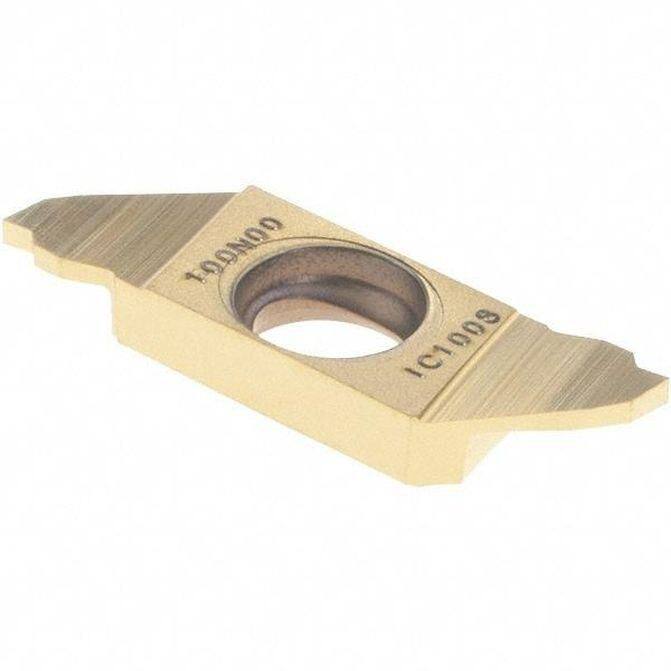

Manufacturer Part Number: 6405429|Insert Style|SCILInsert Size Code|22Insert Material|Solid CarbideManufacturer Grade|IC1008Cutting Width (Decimal Inch)|0.0394Cutting Width (mm)|1.00Cutting Width (Inch)|Insert Holding Method|ScrewLead Angle Direction|NeutralInsert Hand|Left HandLead Angle|Relief Angle|7.00Corner Radius (Inch)|Corner Radius (mm)|Corner Radius (Decimal Inch)|Chipbreaker|Multi-use Tool|YesCutting Tool Application|Grooving; PartingSeries|SwisscutCoating Process|PVDOverall Length (mm)|22.00Overall Length (Decimal Inch)|0.8661Primary Workpiece Material|UniversalPrimary Workpiece Material Code|H; K; M; N; P; SSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|Iso Code|ISO 13399Standards|ISO 13399Cutting Height (mm)|7.00Cutting Height (Decimal Inch)|0.2756Width Tolerance|Manufacturers Catalog Number|SCIL 22-100N-00Maximum Depth of Cut (mm)|4.00Material Grade|C1; C2; C3; C5; C6Hole Diameter (Decimal Inch)|Insert Seat Size|Full Radius|NoCutting Direction|Maximum Depth of Cut (Decimal Inch)|0.1575Insert Height (Decimal Inch)|MSC/Manufacturer Number|Coating Classification|Insert Width (Decimal Inch)|Stocking Category|Overall Width (Decimal Inch - 4 Decimals)|0.1181Overall Width (mm)|3.00Coating/Finish|TiAlN; TiNSingle Or Double End|SingleProduct Service Code|Hole Diameter (Mm) ( - 0 Decimals)|UNSPSC Code|
