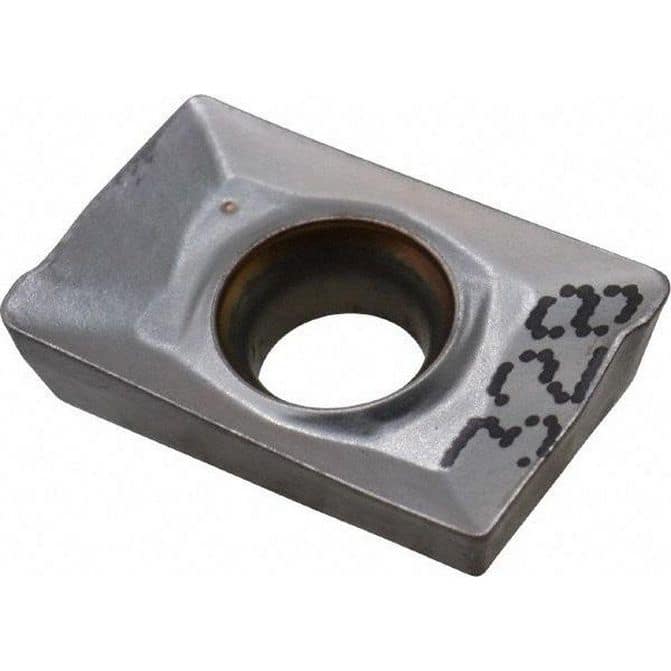

Manufacturer Part Number: 5601455|Insert Style|ADMTInsert Size|15Insert Material|Solid CarbideInsert Shape|ParallelogramInscribed Circle (Inch)|3/8Manufacturer Grade|IC328Corner Radius (Decimal Inch)|0.0000Corner Radius (mm)|0.80Number Of Cutting Edges|2Thickness (Decimal Inch - 4 Decimals)|0.2330Thickness (mm)|Coating/Finish|TiCNRelief Angle|15Maximum Depth of Cut (Decimal Inch)|0.4720Maximum Depth of Cut (mm)|Insert Size Code|1503Material Grade|C2; C3; C5; C6Width (Inch)|3/8Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.3750Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.2200 to 0.2350Corner Radius (Inch)|Inscribed Circle Range (Decimal Inch)|0.3500 to 0.4000Length Range (Decimal Inch)|0.6000 to 0.6500Insert Hand|Right HandSeries|HMICCoating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|0.1100Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|0.5510Rake|PositivePrimary Workpiece Material|Steel; Stainless Steel; Superalloys & TitaniumPrimary Workpiece Material Code|P; M; SSecondary Workpiece Material|Secondary Workpiece Material Code|SAnsi Code|ADMT 1503PDR-HMIC328Iso Code|ADMT 1503PDR-HMStandards|ANSI; ISO 13399Convex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|HonedManufacturers Catalog Number|ADMT 1503PDR-HMIC328Cutter Series Compatibility|ADKChip Breaker|HMCutting Direction|Material Application|Steel; Stainless Steel; Superalloys & TitaniumUNSPSC Code|Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|SingleIncluded Angle Degree|85Length (mm)|Width (Decimal Inch - 4 Decimals)|0.3748Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.6240System Of Measurement|
