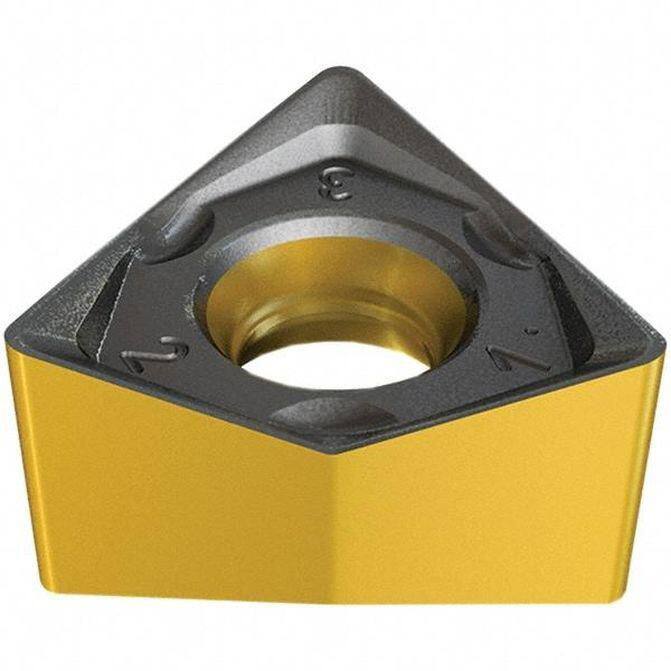

Manufacturer Part Number: 5607702|Insert Style|WNMUInsert Size|07Insert Material|Solid CarbideInsert Shape|TrigonInscribed Circle (Inch)|29/64Manufacturer Grade|IC808Corner Radius (Decimal Inch)|0.0315Corner Radius (mm)|0.80Number Of Cutting Edges|6Thickness (Decimal Inch - 4 Decimals)|0.2320Thickness (mm)|5.90Coating/Finish|TiAlN; AlTiN; TiNRelief Angle|0Maximum Depth of Cut (Decimal Inch)|0.2760Maximum Depth of Cut (mm)|7.00Insert Size Code|0705Material Grade|SubmicronWidth (Inch)|29/64Length (Inch)|29/64Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.4528Inscribed Circle (mm)|11.50Thickness Range (Decimal Inch)|0.2200 to 0.2350Corner Radius (Inch)|1/32Inscribed Circle Range (Decimal Inch)|0.4000 to 0.5000Length Range (Decimal Inch)|0.4500 to 0.5000Insert Hand|NeutralSeries|HELIDOCoating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|0.2760Rake|NegativePrimary Workpiece Material|Steel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard MaterialPrimary Workpiece Material Code|P; M; K; S; HSecondary Workpiece Material|Secondary Workpiece Material Code|H; SAnsi Code|H690 WNMU 0705PNR-MM IC808Iso Code|H690 WNMU 0705PNR-MMStandards|ANSI; ISO 13399Convex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|Chamfered; HonedManufacturers Catalog Number|H690 WNMU 0705PNR-MM IC808Cutter Series Compatibility|H690-07Chip Breaker|MMCutting Direction|Material Application|Steel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard MaterialUNSPSC Code|Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|Sumotec PVDSingle or Double Sided Insert|DoubleIncluded Angle Degree|60Length (mm)|7.30Width (Decimal Inch - 4 Decimals)|0.4528Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.4528System Of Measurement|
