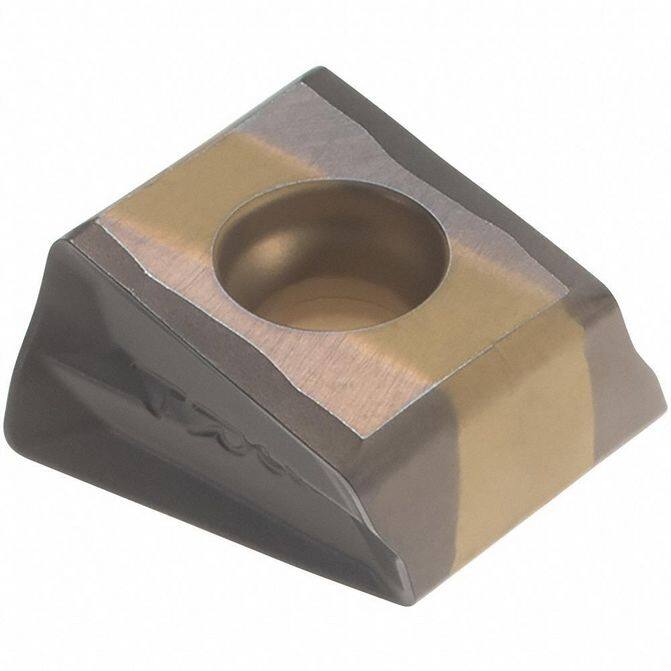

Manufacturer Part Number: 5606675|Insert Style|LNMTInsert Size|13Insert Material|Solid CarbideInsert Shape|ButterflyInscribed Circle (Inch)|Manufacturer Grade|IC5400Corner Radius (Decimal Inch)|0.0315Corner Radius (mm)|0.80Number Of Cutting Edges|4Thickness (Decimal Inch - 4 Decimals)|0.5140Thickness (mm)|Coating/Finish|TiCN; Al2O3; TiNRelief Angle|0Maximum Depth of Cut (Decimal Inch)|0.4920Maximum Depth of Cut (mm)|12.50Insert Size Code|1306Material Grade|Width (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.2620Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.5000+Corner Radius (Inch)|1/32Inscribed Circle Range (Decimal Inch)|0.2500 to 0.3000Length Range (Decimal Inch)|0.5000 to 0.6000Insert Hand|Right HandSeries|HELITANGCoating Process|MTCVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|0.5409Rake|NegativePrimary Workpiece Material|Steel; Stainless SteelPrimary Workpiece Material Code|P; MSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|T490 LNMT 1306PNTR IC5400Iso Code|T490 LNMT 1306PNTRStandards|ANSI; ISO 13399Convex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|HelicalManufacturers Catalog Number|T490 LNMT 1306PNTR IC5400Cutter Series Compatibility|T490 LNK13Chip Breaker|PNTRCutting Direction|Material Application|Steel; Stainless SteelUNSPSC Code|Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|CVDSingle or Double Sided Insert|DoubleIncluded Angle Degree|90Length (mm)|Width (Decimal Inch - 4 Decimals)|0.2620Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.5409System Of Measurement|
