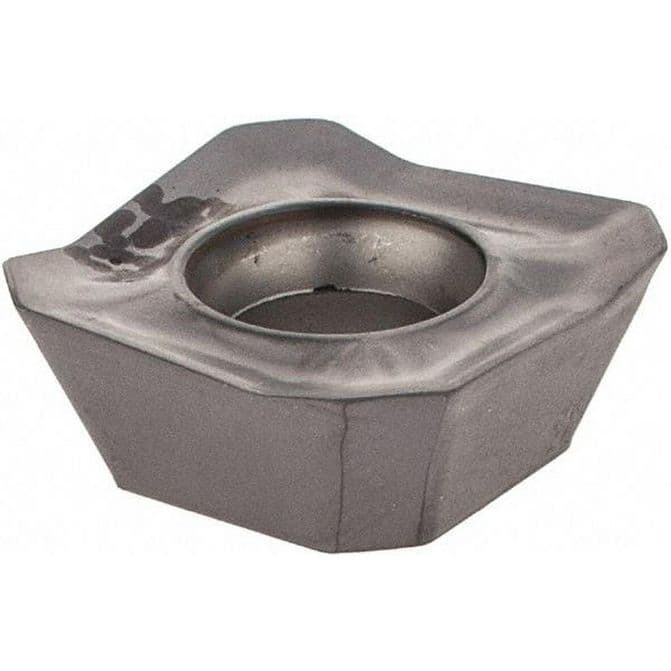

Manufacturer Part Number: 5690318|Insert Style|SEKTInsert Size|4Insert Material|Solid CarbideInsert Shape|SquareInscribed Circle (Inch)|1/2Manufacturer Grade|IC950Corner Radius (Decimal Inch)|0.0000Corner Radius (mm)|Number Of Cutting Edges|4Thickness (Decimal Inch - 4 Decimals)|0.2030Thickness (mm)|Coating/Finish|TiAlNRelief Angle|20Maximum Depth of Cut (Decimal Inch)|0.2520Maximum Depth of Cut (mm)|6.40Insert Size Code|43Material Grade|C1; C2; C3; C5; C6Width (Inch)|1/2Length (Inch)|Thickness (Inch)|13/64Inscribed Circle (Decimal Inch)|0.5000Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.2000 to 0.2200Corner Radius (Inch)|Inscribed Circle Range (Decimal Inch)|0.5000 to 0.5100Length Range (Decimal Inch)|0.5000 to 0.6000Insert Hand|NeutralSeries|ISCARMILLCoating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|0.5079Rake|PositivePrimary Workpiece Material|Steel; Cast IronPrimary Workpiece Material Code|P; KSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|SEKT 43AFR-HM IC950Iso Code|SEKT 1204AFR-HMStandards|ANSI; ISO 13399Convex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|HonedManufacturers Catalog Number|SEKT 43AFR-HM IC950Cutter Series Compatibility|F92ST; F45STChip Breaker|HMCutting Direction|Material Application|Steel; Cast IronUNSPSC Code|Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|Width (Decimal Inch - 4 Decimals)|0.5000Width (mm - 2 Decimals)|12.90Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.5000System Of Measurement|
