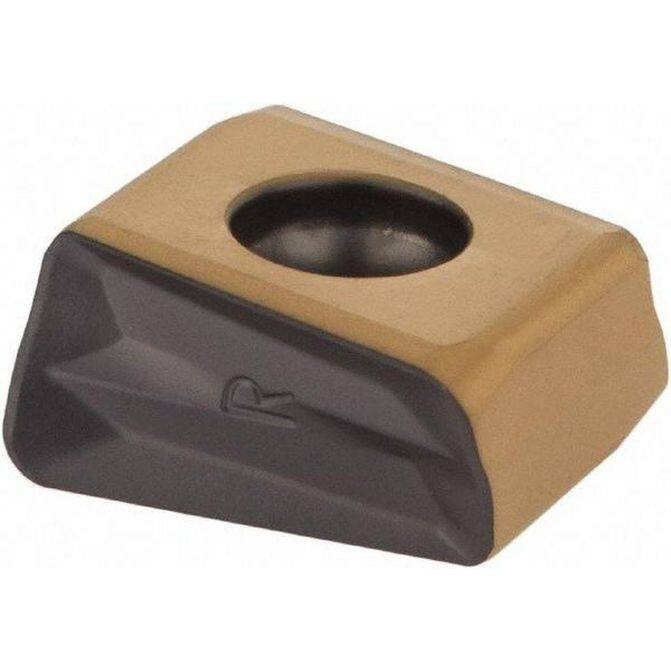

Manufacturer Part Number: 5606065|Insert Style|LNHTInsert Size|13Insert Material|Solid CarbideInsert Shape|ButterflyInscribed Circle (Inch)|Manufacturer Grade|IC830Corner Radius (Decimal Inch)|0.0630Corner Radius (mm)|1.60Number Of Cutting Edges|4Thickness (Decimal Inch - 4 Decimals)|0.5070Thickness (mm)|Coating/Finish|AlTiN; TiNRelief Angle|0Maximum Depth of Cut (Decimal Inch)|0.4920Maximum Depth of Cut (mm)|12.50Insert Size Code|130616Material Grade|Width (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.2620Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.5000+Corner Radius (Inch)|Inscribed Circle Range (Decimal Inch)|0.2500 to 0.3000Length Range (Decimal Inch)|0.5000 to 0.6000Insert Hand|Right HandSeries|HELITANGCoating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|0.5437Rake|NegativePrimary Workpiece Material|Steel; Stainless Steel; Superalloys & TitaniumPrimary Workpiece Material Code|P; M; SSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|T490 LNHT 130616PNTR IC830Iso Code|T490 LNHT 130616PNTRStandards|ANSI; ISO 13399Convex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|HelicalManufacturers Catalog Number|T490 LNHT 130616PNTR IC830Cutter Series Compatibility|T490 LNK13Chip Breaker|PNTRCutting Direction|Material Application|Steel; Stainless Steel; Superalloys & TitaniumUNSPSC Code|Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|Sumotec PVDSingle or Double Sided Insert|DoubleIncluded Angle Degree|90Length (mm)|Width (Decimal Inch - 4 Decimals)|0.2620Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.5437System Of Measurement|
