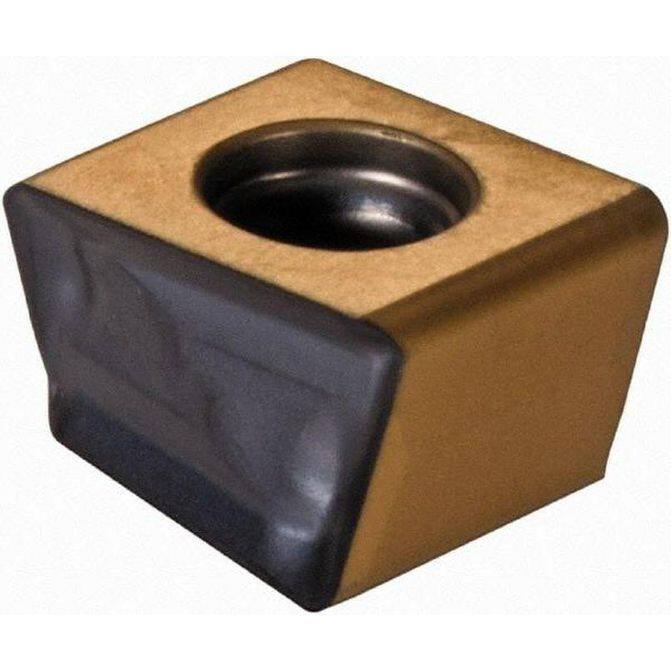

Manufacturer Part Number: 5605853|Insert Style|LNHTInsert Size|10Insert Material|Solid CarbideInsert Shape|ButterflyInscribed Circle (Inch)|Manufacturer Grade|IC830Corner Radius (Decimal Inch)|0.0394Corner Radius (mm)|1.00Number Of Cutting Edges|4Thickness (Decimal Inch - 4 Decimals)|0.3910Thickness (mm)|Coating/Finish|AlTiN; TiNRelief Angle|0Maximum Depth of Cut (Decimal Inch)|0.3350Maximum Depth of Cut (mm)|Insert Size Code|1006Material Grade|Width (Inch)|Length (Inch)|Thickness (Inch)|25/64Inscribed Circle (Decimal Inch)|0.2560Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.3500 to 0.5000Corner Radius (Inch)|Inscribed Circle Range (Decimal Inch)|0.2500 to 0.3000Length Range (Decimal Inch)|0.4000 to 0.4500Insert Hand|Right HandSeries|TANGPLUNGECoating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|0.3350Rake|NegativePrimary Workpiece Material|Steel; Stainless Steel; Superalloys & TitaniumPrimary Workpiece Material Code|P; M; SSecondary Workpiece Material|Secondary Workpiece Material Code|SAnsi Code|HTP LNHT 1006 ER IC830Iso Code|HTP LNHT 1006 ERStandards|ANSI; ISO 13399Convex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|HonedManufacturers Catalog Number|HTP LNHT 1006 ER IC830Cutter Series Compatibility|HTP LN10Chip Breaker|ERCutting Direction|Material Application|Steel; Stainless Steel; Superalloys & TitaniumUNSPSC Code|Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|Sumotec PVDSingle or Double Sided Insert|DoubleIncluded Angle Degree|90Length (mm)|Width (Decimal Inch - 4 Decimals)|0.2560Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.4134System Of Measurement|
