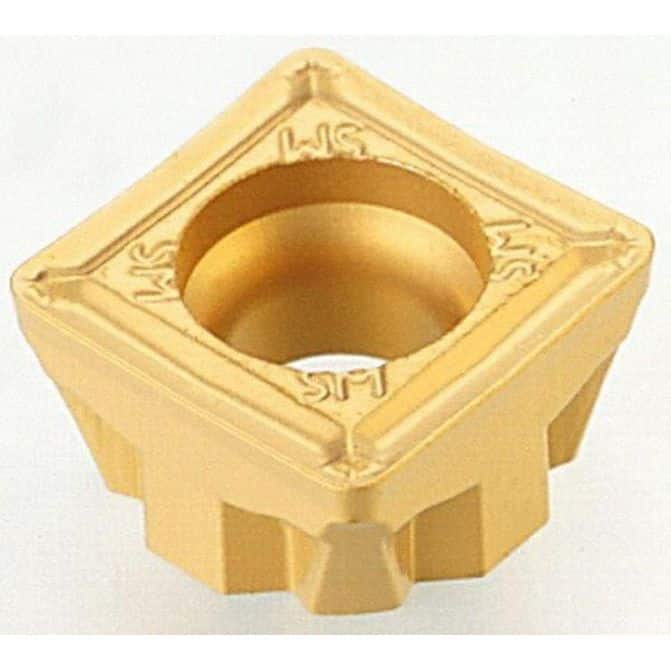

Manufacturer Part Number: 5602549|Insert Style|S45MTInsert Size|11Insert Material|Solid CarbideInsert Shape|SquareInscribed Circle (Inch)|Manufacturer Grade|IC928Corner Radius (Decimal Inch)|0.0000Corner Radius (mm)|0.78Number Of Cutting Edges|4Thickness (Decimal Inch - 4 Decimals)|0.2360Thickness (mm)|Coating/Finish|TiAlNRelief Angle|Maximum Depth of Cut (Decimal Inch)|0.2887Maximum Depth of Cut (mm)|Insert Size Code|1106Material Grade|C1; C2; C5; C6Width (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.4646Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.2350 to 0.2500Corner Radius (Inch)|Inscribed Circle Range (Decimal Inch)|0.4000 to 0.5000Length Range (Decimal Inch)|0.4500 to 0.5000Insert Hand|NeutralSeries|CHAMMILLCoating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|0.4331Rake|PositivePrimary Workpiece Material|Steel; Stainless Steel; Superalloys & TitaniumPrimary Workpiece Material Code|P; M; SSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|S45MT 1106AP-N IC928Iso Code|S45MT 1106AP-NStandards|ANSI; ISO 13399Convex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|T-LandManufacturers Catalog Number|S45MT 1106AP-N IC928Cutter Series Compatibility|Chip Breaker|NCutting Direction|Material Application|Steel; Stainless Steel; Superalloys & TitaniumUNSPSC Code|Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|Width (Decimal Inch - 4 Decimals)|0.4646Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.4646System Of Measurement|
