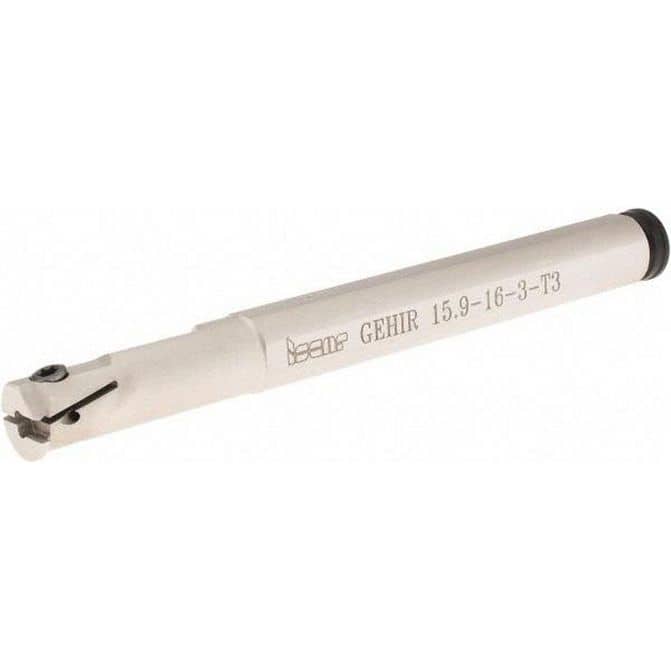

Manufacturer Part Number: 2801056|Internal or External|InternalToolholder Type|Non-Face GroovingInsert Seat Size|Hand of Holder|Right HandCutting Direction|Right HandMaximum Depth of Cut (Decimal Inch)|0.1180Maximum Depth of Cut (mm)|Minimum Groove Width (Inch)|Minimum Groove Width (Decimal Inch)|0.0950Minimum Groove Width (mm)|Maximum Groove Width (mm)|Toolholder Style|GEHIMaximum Groove Width (Decimal Inch)|0.1260Maximum Groove Width (Inch)|Insert Holding Method|ClampInsert Compatibility|GE.ICompatible Insert Size Code|GEMI; GEMI (Full Radius); GEPI; GEPI (Full Radius); GEPI-MT; GEPI-WTShank Width (Decimal Inch)|Shank Width/Diameter (Decimal Inch)|0.6250Shank Width/Diameter (Inch)|Shank Width (mm)|Shank Diameter (mm)|Shank Width/Diameter (mm)|Shank Height (mm)|Shank Diameter (Decimal Inch)|Shank Height (Inch)|Shank Height (Decimal Inch)|Series|Fix-GripShank Length (mm)|Shank Length (Decimal Inch)|Shank Length (Inch)|Overall Length (Inch)|Overall Length (mm)|Overall Length (Decimal Inch)|6.0000Multi-use Tool|YesMaximum Workpiece Diameter (Decimal Inch)|Maximum Workpiece Diameter (mm)|Minimum Overhang (Decimal Inch)|Maximum Overhang (Inch)|Back of Bar to Cutting Edge (mm)|Back of Bar to Cutting Edge (Decimal Inch)|Center to Cutting Edge (Decimal Inch)|0.4300Center to Cutting Edge (mm)|Minimum Hole Diameter (mm)|Minimum Hole Diameter (Decimal Inch)|0.6300Head Height (Decimal Inch)|Head Height (Inch)|Head Height (mm)|Head Length (Decimal Inch)|Head Length (Inch)|Head Length (mm)|Primary Workpiece Material|UniversalPrimary Workpiece Material Code|H; K; M; N; P; SProduct Service Code|UNSPSC Code|Secondary Workpiece Material|Vibration Dampening|Secondary Workpiece Material Code|Standards|ISO 13399Coolant Hole Diameter (Inch)|Coolant Hole Diameter (mm)|Coolant Hole Thread Size|Coolant Hole Diameter (Decimal Inch)|Maximum Bore Depth (Decimal Inch)|Maximum Groove Outside Diameter (mm)|Maximum Groove Outside Diameter (Decimal Inch)|Minimum Axial Groove Inside Diameter(mm)|Minimum Axial Groove Inside Diameter (Decimal Inch)|Mount Type|Full Radius Insert|Manufacturers Catalog Number|Toolholder Material|Insert Hand|Complete Insert Compatibility|GEMI 3002M; GEPI 2.47-0.20; GEPI 2.5-MT0.05; GEPI 2.5-WT0.05; GEPI 2.50-0.10; GEPI 2.50-0.20; GEPI 2.70-0.20; GEPI 3.00-0.20; GEPI 3.00-1.50; GEPI 3.18-1.59Minimum Bore Diameter (Decimal Inch)|MSC/Manufacturer Number|Number of Inserts Included in Order|Coolant Through|YesMinimum Bore Diameter (mm)|Maximum Bore Depth (mm)|
