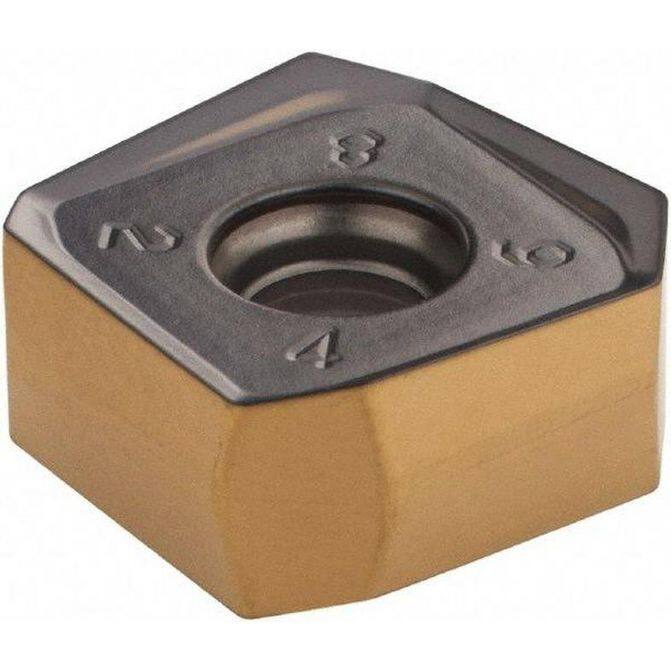

Manufacturer Part Number: 5606101|Insert Style|SXMUInsert Size|16Insert Material|Solid CarbideInsert Shape|SquareInscribed Circle (Inch)|Manufacturer Grade|IC830Corner Radius (Decimal Inch)|0.0315Corner Radius (mm)|0.80Number Of Cutting Edges|8Thickness (Decimal Inch - 4 Decimals)|0.2930Thickness (mm)|Coating/Finish|AlTiN; TiNRelief Angle|0Maximum Depth of Cut (Decimal Inch)|0.2810Maximum Depth of Cut (mm)|7.15Insert Size Code|1606Material Grade|Width (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.6437Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.2500 to 0.3500Corner Radius (Inch)|1/32Inscribed Circle Range (Decimal Inch)|0.6000 to 0.7000Length Range (Decimal Inch)|0.6000 to 0.6500Insert Hand|Right HandSeries|HELIDOCoating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|0.6122Rake|NegativePrimary Workpiece Material|Steel; Stainless Steel; Superalloys & TitaniumPrimary Workpiece Material Code|P; M; SSecondary Workpiece Material|Secondary Workpiece Material Code|SAnsi Code|S845 SXMU 1606ADTR-MM IC830Iso Code|S845 SXMU 1606ADTR-MMStandards|ANSI; ISO 13399Convex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|HelicalManufacturers Catalog Number|S845 SXMU 1606ADTR-MM IC830Cutter Series Compatibility|S845 F45SXChip Breaker|MMCutting Direction|Material Application|Steel; Stainless Steel; Superalloys & TitaniumUNSPSC Code|Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|Sumotec PVDSingle or Double Sided Insert|DoubleIncluded Angle Degree|90Length (mm)|Width (Decimal Inch - 4 Decimals)|0.6437Width (mm - 2 Decimals)|16.35Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.6437System Of Measurement|
