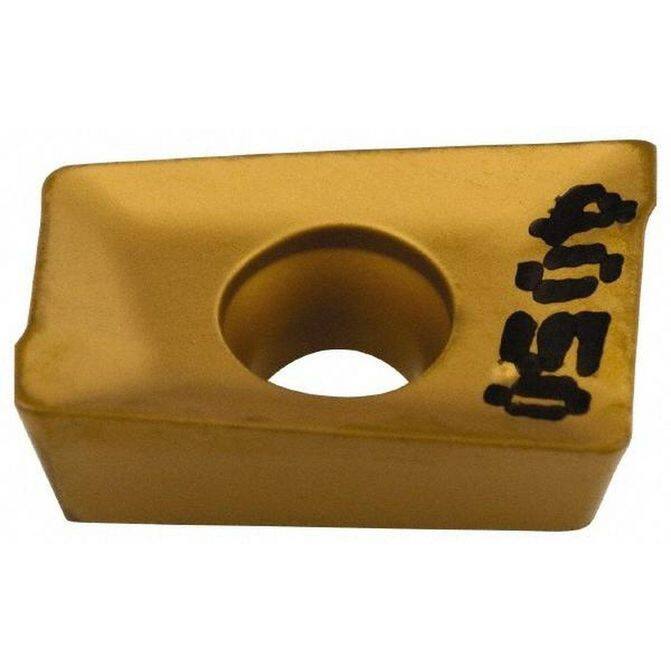

Manufacturer Part Number: 5603414|Insert Style|APKTInsert Size|10Insert Material|Solid CarbideInsert Shape|ParallelogramInscribed Circle (Inch)|Manufacturer Grade|IC4050Corner Radius (Decimal Inch)|0.0000Corner Radius (mm)|0.50Number Of Cutting Edges|2Thickness (Decimal Inch - 4 Decimals)|0.1400Thickness (mm)|Coating/Finish|TiCN; Al2O3; TiNRelief Angle|11Maximum Depth of Cut (Decimal Inch)|0.3860Maximum Depth of Cut (mm)|Insert Size Code|1003Material Grade|C1; C2; C5; C6Width (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.2640Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.1250 to 0.1500Corner Radius (Inch)|Inscribed Circle Range (Decimal Inch)|0.2500 to 0.3000Length Range (Decimal Inch)|0.4000 to 0.4500Insert Hand|Right HandSeries|HELIMILLCoating Process|MTCVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|0.3960Rake|PositivePrimary Workpiece Material|Steel; Stainless Steel; Cast IronPrimary Workpiece Material Code|P; M; KSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|APKT 1003PDR-HM IC4050Iso Code|APKT 1003PDR-HMStandards|ANSI; ISO 13399Convex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|Chamfered; HonedManufacturers Catalog Number|APKT 1003PDR-HM IC4050Cutter Series Compatibility|HM90-10Chip Breaker|HMCutting Direction|Material Application|Steel; Stainless Steel; Cast IronUNSPSC Code|Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|CVDSingle or Double Sided Insert|SingleIncluded Angle Degree|85Length (mm)|Width (Decimal Inch - 4 Decimals)|0.2638Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.4310System Of Measurement|
