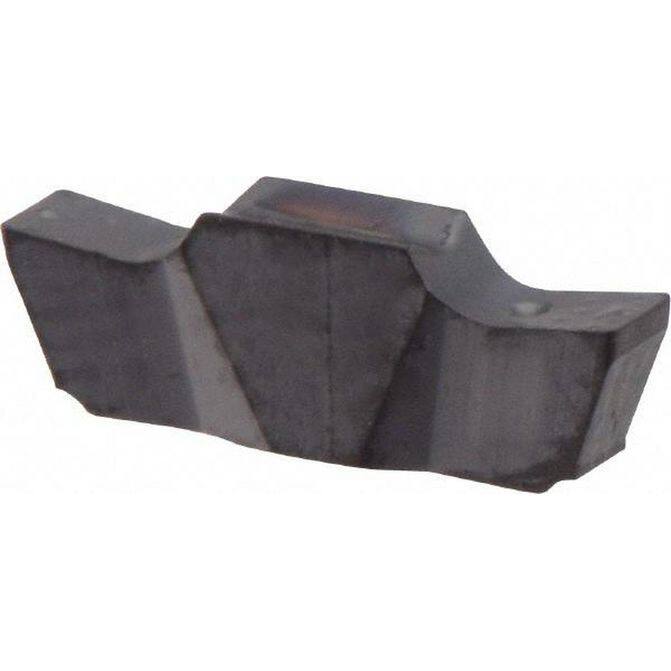

Manufacturer Part Number: 6403349|Insert Style|GEPIInsert Size Code|178015Cutting Width (Decimal Inch)|0.0701Cutting Width (mm)|1.78Insert Hand|NeutralMaximum Depth of Cut (Decimal Inch)|0.0984Maximum Depth of Cut (mm)|2.50Insert Material|Solid CarbideManufacturer Grade|IC908Full Radius|NoCorner Radius (Decimal Inch)|0.0059Corner Radius (mm)|0.15Number Of Cutting Edges|Rake|PositiveInsert Holding Method|ClampFace Grooving|Insert Size|178015Material Grade|SubmicronCutting Width (Inch)|Maximum Depth of Cut (Inch)|Cutting Height (mm)|Cutting Height (Inch)|Maximum Depth Of Cut Range (Decimal Inch)|0.0750 to 0.1000Cutting Height (Decimal Inch)|Maximum Depth Of Cut Range (mm)|2.00 to 3.00Corner Radius (Inch)|Lead Angle|Multi-use Tool|NoSeries|Cut GripCoating Process|PVDRake Angle|8.00Overall Length (Decimal Inch)|0.3937Overall Length (Inch)|Overall Length (mm)|10.00Primary Workpiece Material|UniversalPrimary Workpiece Material Code|H; K; M; P; SSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|Iso Code|ISO 13399Standards|ISO 13399Relief Angle|Maximum Corner Radius (Decimal Inch)|Minimum Corner Radius (Decimal Inch)|Manufacturers Catalog Number|Overall Width (Inch)|Insert Thickness (Decimal Inch)|External Relief Angle|Internal Relief Angle|Cut Condition|UNSPSC Code|Minimum Groove Width (mm)|Inscribed Circle (Decimal Inch)|Thickness (Inch)|Type|Maximum Groove Width (mm)|Minimum Insert Width (mm)|Chip Breaker|Insert Seat Size|Inscribed Circle (Inch)|MSC/Manufacturer Number|Style|Inscribed Circle (mm)|Insert Height (Decimal Inch)|Gage Diameter (Decimal Inch)|Coating Classification|Hole Diameter (Decimal Inch)|Gage Diameter (Inch)|Overall Width (mm)|1.78Overall Width (Decimal Inch - 4 Decimals)|0.0701Included Angle Degree|Coating/Finish|TiAlNMaximum Hole Depth (mm)|Single Or Double End|DoubleProjection (mm)|Groove Width (mm)|For Use With|Insert Thickness|Minimum Hole Diameter (mm)|Hole Diameter (Mm) ( - 0 Decimals)|Product Service Code|
