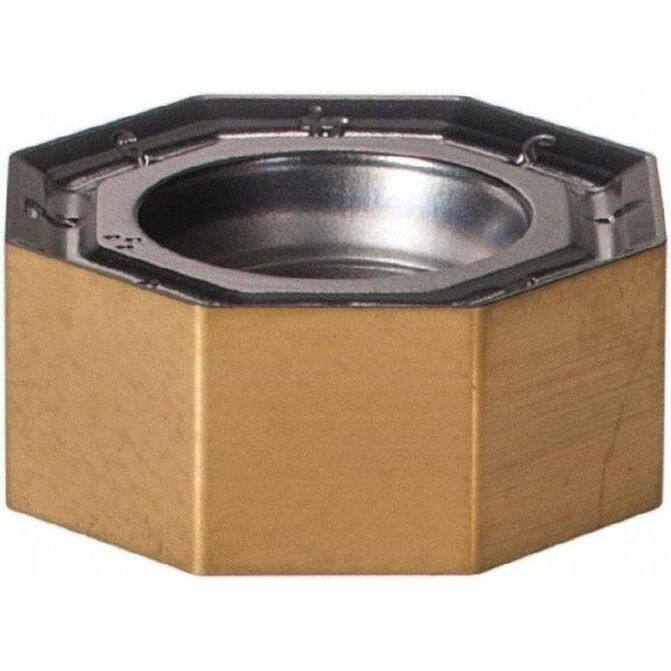

Manufacturer Part Number: 5606391|Insert Style|ONHUInsert Size|05Insert Material|Solid CarbideInsert Shape|OctagonInscribed Circle (Inch)|Manufacturer Grade|IC808Corner Radius (Decimal Inch)|0.0197Corner Radius (mm)|0.51Number Of Cutting Edges|16Thickness (Decimal Inch - 4 Decimals)|0.2000Thickness (mm)|Coating/Finish|TiAlN; AlTiN; TiNRelief Angle|0Maximum Depth of Cut (Decimal Inch)|0.1380Maximum Depth of Cut (mm)|3.51Insert Size Code|050505Material Grade|SubmicronWidth (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.5118Inscribed Circle (mm)|13.00Thickness Range (Decimal Inch)|0.2000 to 0.2200Corner Radius (Inch)|Inscribed Circle Range (Decimal Inch)|0.5100 to 0.6000Length Range (Decimal Inch)|0.5000 to 0.6000Insert Hand|NeutralSeries|HELIDOCoating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|0.1380Rake|NegativePrimary Workpiece Material|Steel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard MaterialPrimary Workpiece Material Code|P; M; K; S; HSecondary Workpiece Material|Secondary Workpiece Material Code|H; SAnsi Code|ONHU 050505-TN IC808Iso Code|ONHU 050505-TNStandards|ANSI; ISO 13399Convex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|T-LandManufacturers Catalog Number|ONHU 050505-TN IC808Cutter Series Compatibility|FF SOF; SOF45; SOE45Chip Breaker|TNCutting Direction|Material Application|Steel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard MaterialUNSPSC Code|Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|Sumotec PVDSingle or Double Sided Insert|DoubleIncluded Angle Degree|135Length (mm)|Width (Decimal Inch - 4 Decimals)|0.5118Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.5118System Of Measurement|
