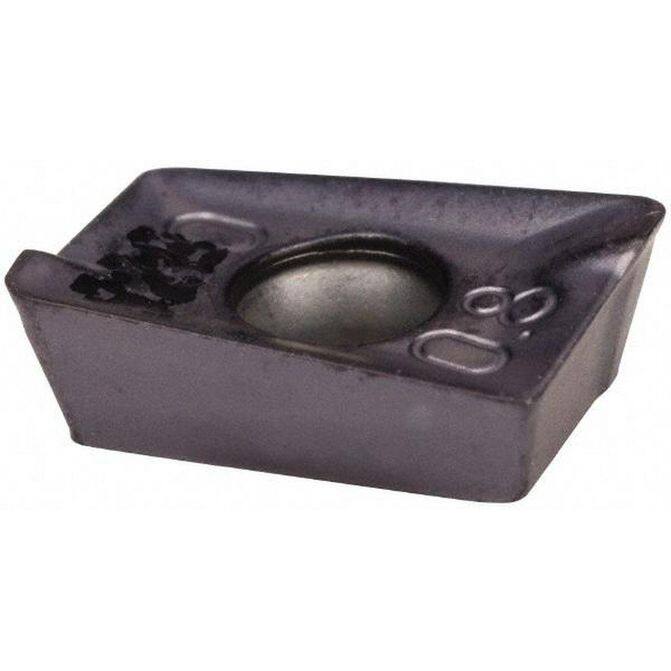

Manufacturer Part Number: 5692339|Insert Style|APKTInsert Size|10Insert Material|Solid CarbideInsert Shape|ParallelogramInscribed Circle (Inch)|Manufacturer Grade|IC928Corner Radius (Decimal Inch)|0.0315Corner Radius (mm)|0.80Number Of Cutting Edges|2Thickness (Decimal Inch - 4 Decimals)|0.1370Thickness (mm)|Coating/Finish|TiAlNRelief Angle|11Maximum Depth of Cut (Decimal Inch)|0.3860Maximum Depth of Cut (mm)|8.00Insert Size Code|100308Material Grade|C1; C3; C5; C6Width (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.2640Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.1250 to 0.1500Corner Radius (Inch)|1/32Inscribed Circle Range (Decimal Inch)|0.2500 to 0.3000Length Range (Decimal Inch)|0.4000 to 0.4500Insert Hand|Right HandSeries|HELIMILLCoating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|0.3900Rake|PositivePrimary Workpiece Material|Steel; Stainless Steel; Superalloys & TitaniumPrimary Workpiece Material Code|P; M; SSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|APKT 100308PDTR-RM IC928Iso Code|APKT 100308PDTR-RMStandards|ANSI; ISO 13399Convex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|Chamfered; HonedManufacturers Catalog Number|APKT 100308PDTR-RM IC928Cutter Series Compatibility|HM90-10Chip Breaker|RMCutting Direction|Material Application|Steel; Stainless Steel; Superalloys & TitaniumUNSPSC Code|Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|SingleIncluded Angle Degree|85Length (mm)|Width (Decimal Inch - 4 Decimals)|0.2640Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.4330System Of Measurement|
