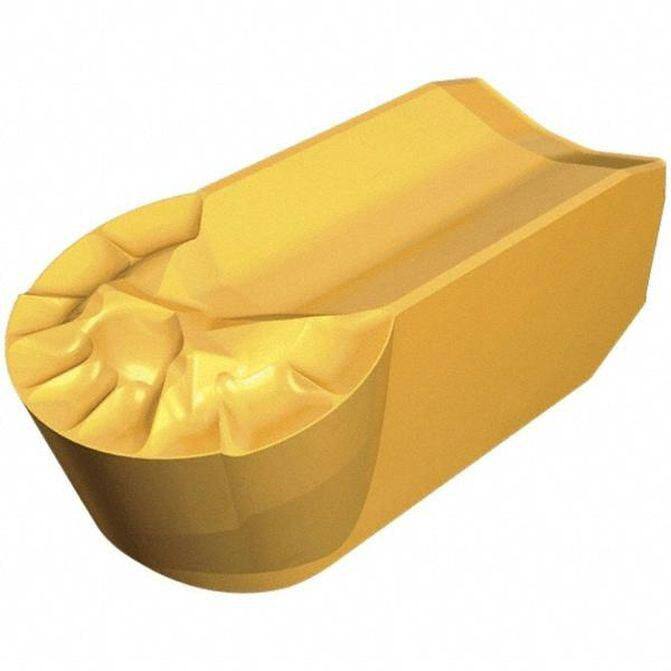

Manufacturer Part Number: 6405020|Insert Style|GIMYInsert Size Code|1260Cutting Width (Decimal Inch)|0.4724Cutting Width (mm)|12.00Insert Hand|NeutralMaximum Depth of Cut (Decimal Inch)|0.2362Maximum Depth of Cut (mm)|6.00Insert Material|CarbideManufacturer Grade|IC830Full Radius|YesCorner Radius (Decimal Inch)|0.2362Corner Radius (mm)|6.00Number Of Cutting Edges|Rake|PositiveInsert Holding Method|ClampFace Grooving|Insert Size|1260Material Grade|Cutting Width (Inch)|Maximum Depth of Cut (Inch)|Cutting Height (mm)|Cutting Height (Inch)|Maximum Depth Of Cut Range (Decimal Inch)|0.2000 to 0.3000Cutting Height (Decimal Inch)|Maximum Depth Of Cut Range (mm)|5.00 to 10.00Corner Radius (Inch)|Lead Angle|Multi-use Tool|YesSeries|Cut GripCoating Process|PVDRake Angle|7Overall Length (Decimal Inch)|0.945Overall Length (Inch)|Overall Length (mm)|Primary Workpiece Material|Superalloys; TitaniumPrimary Workpiece Material Code|M; P; SSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|Iso Code|ISO 13399Standards|ISO 13399Relief Angle|Maximum Corner Radius (Decimal Inch)|Minimum Corner Radius (Decimal Inch)|Manufacturers Catalog Number|Overall Width (Inch)|Insert Thickness (Decimal Inch)|External Relief Angle|Internal Relief Angle|Cut Condition|UNSPSC Code|23242105Minimum Groove Width (mm)|Inscribed Circle (Decimal Inch)|Thickness (Inch)|Type|Maximum Groove Width (mm)|Minimum Insert Width (mm)|Chip Breaker|YInsert Seat Size|Inscribed Circle (Inch)|MSC/Manufacturer Number|Style|Inscribed Circle (mm)|Insert Height (Decimal Inch)|Gage Diameter (Decimal Inch)|Coating Classification|Hole Diameter (Decimal Inch)|Gage Diameter (Inch)|Overall Width (mm)|Overall Width (Decimal Inch - 4 Decimals)|Included Angle Degree|Coating/Finish|AlTiN; TiNMaximum Hole Depth (mm)|Single Or Double End|Projection (mm)|Groove Width (mm)|For Use With|Insert Thickness|Minimum Hole Diameter (mm)|Hole Diameter (Mm) ( - 0 Decimals)|Product Service Code|
