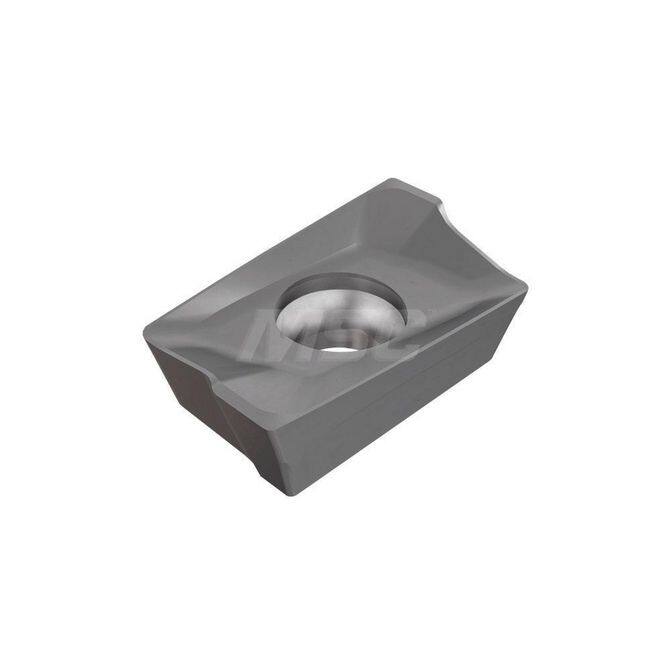

Manufacturer Part Number: 5680762|Insert Style|APCTInsert Size|10Insert Material|Solid CarbideInsert Shape|ParallelogramInscribed Circle (Inch)|Manufacturer Grade|IC808Corner Radius (Decimal Inch)|0.0079Corner Radius (mm)|0.20Number Of Cutting Edges|2Thickness (Decimal Inch - 4 Decimals)|0.1390Thickness (mm)|Coating/Finish|TiAlN; AlTiN; TiNRelief Angle|11Maximum Depth of Cut (Decimal Inch)|0.3860Maximum Depth of Cut (mm)|10.10Insert Size Code|100302Material Grade|SubmicronWidth (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.2740Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.1250 to 0.1500Corner Radius (Inch)|1/128Inscribed Circle Range (Decimal Inch)|0.2500 to 0.3000Length Range (Decimal Inch)|0.4500 to 0.5000Insert Hand|Right HandSeries|HELI2000Coating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|0.3980Rake|PositivePrimary Workpiece Material|Steel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard MaterialPrimary Workpiece Material Code|P; M; K; S; HSecondary Workpiece Material|Secondary Workpiece Material Code|H; SAnsi Code|HM90 APCT 100302R-PDR IC808Iso Code|HM90 APCT 100302R-PDRStandards|ANSI; ISO 13399Convex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|24Cutting Edge Style|HonedManufacturers Catalog Number|HM90 APCT 100302R-PDR IC808Cutter Series Compatibility|HM90-10Chip Breaker|PDRCutting Direction|Material Application|Steel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard MaterialUNSPSC Code|Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|Sumotec PVDSingle or Double Sided Insert|SingleIncluded Angle Degree|85Length (mm)|Width (Decimal Inch - 4 Decimals)|0.2740Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.4590System Of Measurement|
