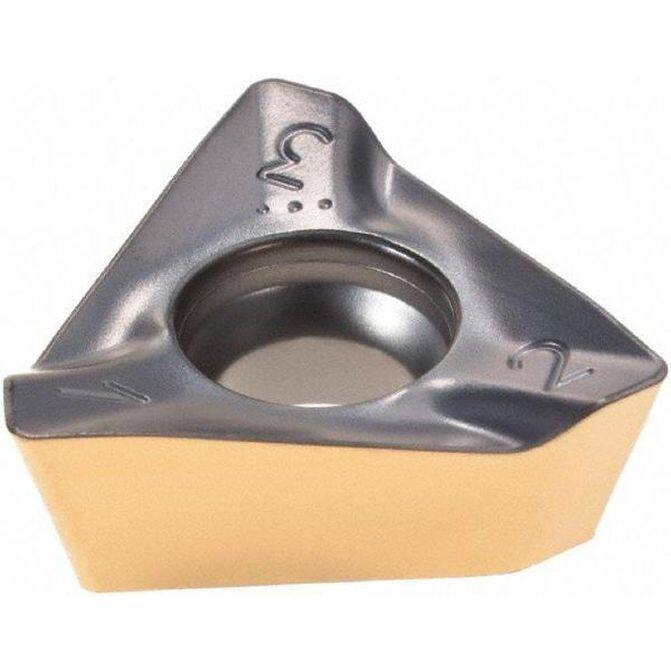

Manufacturer Part Number: 5607506|Insert Style|TDKTInsert Size|15Insert Material|Solid CarbideInsert Shape|TriangleInscribed Circle (Inch)|Manufacturer Grade|IC808Corner Radius (Decimal Inch)|0.0315Corner Radius (mm)|0.80Number Of Cutting Edges|3Thickness (Decimal Inch - 4 Decimals)|0.2300Thickness (mm)|Coating/Finish|TiAlN; AlTiN; TiNRelief Angle|15Maximum Depth of Cut (Decimal Inch)|0.3940Maximum Depth of Cut (mm)|13.00Insert Size Code|1505Material Grade|SubmicronWidth (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.4490Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.2200 to 0.2350Corner Radius (Inch)|1/32Inscribed Circle Range (Decimal Inch)|0.4000 to 0.5000Length Range (Decimal Inch)|0.6500 to 0.7000Insert Hand|Right HandSeries|HELI3MILLCoating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|0.5120Rake|PositivePrimary Workpiece Material|Steel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard MaterialPrimary Workpiece Material Code|P; M; K; S; HSecondary Workpiece Material|Secondary Workpiece Material Code|H; SAnsi Code|HM390 TDKT 1505PDR IC808Iso Code|HM390 TDKT 1505PDRStandards|ANSI; ISO 13399Convex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|HelicalManufacturers Catalog Number|HM390 TDKT 1505PDR IC808Cutter Series Compatibility|HM390-15Chip Breaker|PDRCutting Direction|Material Application|Steel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard MaterialUNSPSC Code|Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|Sumotec PVDSingle or Double Sided Insert|SingleIncluded Angle Degree|60Length (mm)|Width (Decimal Inch - 4 Decimals)|0.6580Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.6580System Of Measurement|
