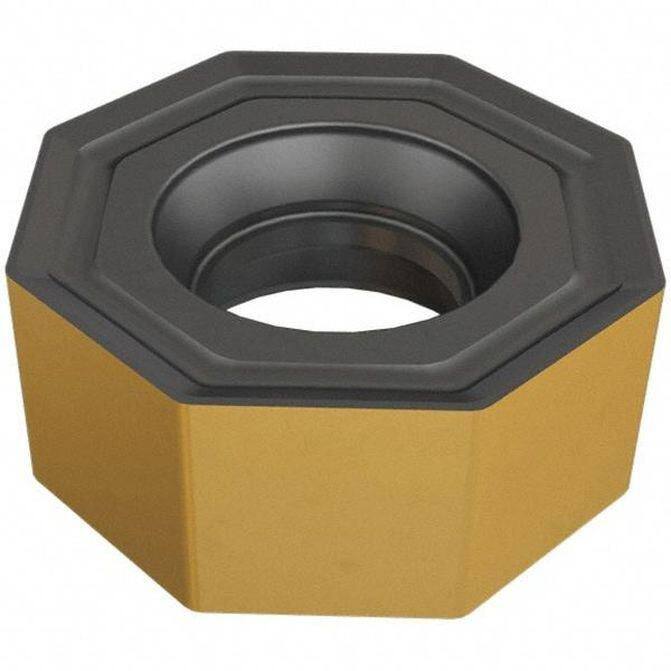

Manufacturer Part Number: 5606052|Insert Style|ONMUInsert Size|05Insert Material|Solid CarbideInsert Shape|OctagonInscribed Circle (Inch)|Manufacturer Grade|DT7150Corner Radius (Decimal Inch)|0.0197Corner Radius (mm)|0.50Number Of Cutting Edges|16Thickness (Decimal Inch - 4 Decimals)|0.2000Thickness (mm)|Coating/Finish|Al2O3; TiAlNRelief Angle|0.00Maximum Depth of Cut (Decimal Inch)|0.3940Maximum Depth of Cut (mm)|3.50Insert Size Code|050505Material Grade|Width (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.5118Inscribed Circle (mm)|13.00Thickness Range (Decimal Inch)|0.2000 to 0.2200Corner Radius (Inch)|Inscribed Circle Range (Decimal Inch)|0.5100 to 0.6000Length Range (Decimal Inch)|0.5000 to 0.6000Insert Hand|NeutralSeries|HELIDOCoating Process|MTCVD; PVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|0.3940Rake|NegativePrimary Workpiece Material|Cast Iron; Hard MaterialPrimary Workpiece Material Code|K; HSecondary Workpiece Material|Secondary Workpiece Material Code|HAnsi Code|ONMU 050505-TN DT7150Iso Code|ONMU 050505-TNStandards|ANSI; ISO 13399Convex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|26Cutting Edge Style|T-LandManufacturers Catalog Number|ONMU 050505-TN DT7150Cutter Series Compatibility|FF SOF; SOF45; SOE45Chip Breaker|TNCutting Direction|Material Application|Cast Iron; Hard MaterialUNSPSC Code|23291601Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|CVD; PVDSingle or Double Sided Insert|DoubleIncluded Angle Degree|135Length (mm)|Width (Decimal Inch - 4 Decimals)|0.5118Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.5118System Of Measurement|
