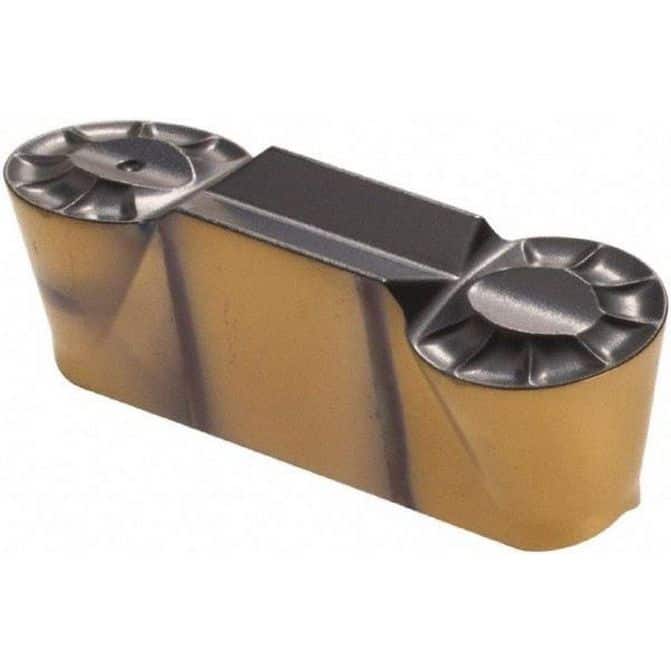

Manufacturer Part Number: 6200334|Insert Style|GRIPInsert Size Code|635318YCutting Width (Decimal Inch)|0.2500Cutting Width (mm)|6.35Insert Hand|NeutralMaximum Depth of Cut (Decimal Inch)|0.1220Maximum Depth of Cut (mm)|3.10Insert Material|Solid CarbideManufacturer Grade|IC808Full Radius|YesCorner Radius (Decimal Inch)|0.1252Corner Radius (mm)|3.18Number Of Cutting Edges|Rake|PositiveInsert Holding Method|ClampFace Grooving|Insert Size|635318Material Grade|SubmicronCutting Width (Inch)|Maximum Depth of Cut (Inch)|Cutting Height (mm)|Cutting Height (Inch)|Maximum Depth Of Cut Range (Decimal Inch)|0.1000 to 0.1500Cutting Height (Decimal Inch)|Maximum Depth Of Cut Range (mm)|3.00 to 4.00Corner Radius (Inch)|Lead Angle|Multi-use Tool|YesSeries|Heli-GripCoating Process|PVDRake Angle|7.00Overall Length (Decimal Inch)|0.7480Overall Length (Inch)|Overall Length (mm)|19.00Primary Workpiece Material|UniversalPrimary Workpiece Material Code|H; K; M; P; SSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|Iso Code|ISO 13399Standards|ISO 13399Relief Angle|Maximum Corner Radius (Decimal Inch)|Minimum Corner Radius (Decimal Inch)|Manufacturers Catalog Number|Overall Width (Inch)|Insert Thickness (Decimal Inch)|External Relief Angle|Internal Relief Angle|Cut Condition|UNSPSC Code|Minimum Groove Width (mm)|Inscribed Circle (Decimal Inch)|Thickness (Inch)|Type|Maximum Groove Width (mm)|Minimum Insert Width (mm)|Chip Breaker|YInsert Seat Size|Inscribed Circle (Inch)|MSC/Manufacturer Number|Style|Inscribed Circle (mm)|Insert Height (Decimal Inch)|Gage Diameter (Decimal Inch)|Coating Classification|Hole Diameter (Decimal Inch)|Gage Diameter (Inch)|Overall Width (mm)|6.35Overall Width (Decimal Inch - 4 Decimals)|0.2500Included Angle Degree|Coating/Finish|AlTiN; TiAlN; TiNMaximum Hole Depth (mm)|Single Or Double End|DoubleProjection (mm)|Groove Width (mm)|For Use With|Insert Thickness|Minimum Hole Diameter (mm)|Hole Diameter (Mm) ( - 0 Decimals)|Product Service Code|
