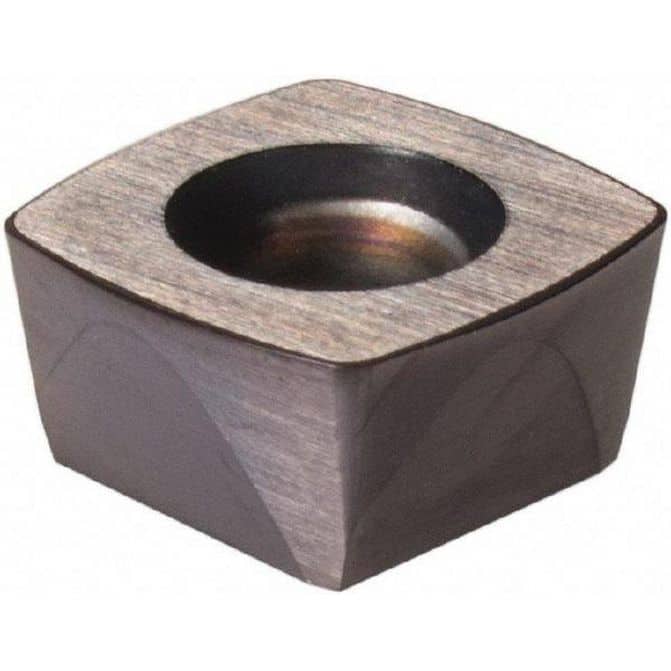

Manufacturer Part Number: 5652239|Insert Style|XDLWInsert Size|09Insert Material|Solid CarbideInsert Shape|SquareInscribed Circle (Inch)|3/8Manufacturer Grade|X400Corner Radius (Decimal Inch)|0.0310Corner Radius (mm)|Number Of Cutting Edges|4Thickness (Decimal Inch - 4 Decimals)|0.1870Thickness (mm)|Coating/Finish|TiAlNRelief Angle|15Maximum Depth of Cut (Decimal Inch)|Maximum Depth of Cut (mm)|Insert Size Code|090408Material Grade|Width (Inch)|3/8Length (Inch)|3/8Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.3750Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.1850 to 0.2000Corner Radius (Inch)|1/32Inscribed Circle Range (Decimal Inch)|0.3500 to 0.4000Length Range (Decimal Inch)|0.3200 to 0.4000Insert Hand|Right HandSeries|XDLWCoating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Steel; Hard MaterialPrimary Workpiece Material Code|P; HSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|XDLW090408SRDIso Code|XDLW090408SRDStandards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|Chamfered; HonedManufacturers Catalog Number|XDLW090408SRDCutter Series Compatibility|7792VXD09Chip Breaker|Flat TopCutting Direction|Material Application|Steel; Hard MaterialUNSPSC Code|Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|Width (Decimal Inch - 4 Decimals)|0.3750Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.3750System Of Measurement|
