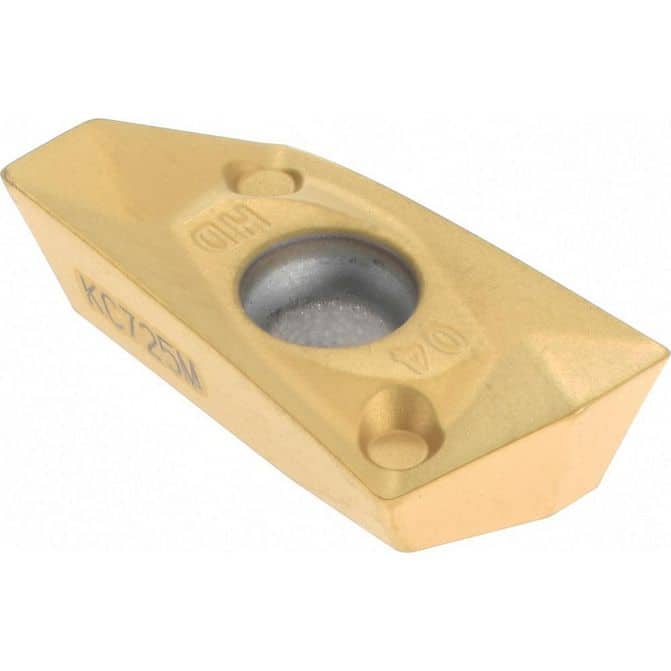

Manufacturer Part Number: 3051863|Insert Style|EDPTInsert Size|14Insert Material|Solid CarbideInsert Shape|ParallelogramInscribed Circle (Inch)|Manufacturer Grade|KC725MCorner Radius (Decimal Inch)|0.0160Corner Radius (mm)|0.40Number Of Cutting Edges|2Thickness (Decimal Inch - 4 Decimals)|0.1770Thickness (mm)|Coating/Finish|TiAlNRelief Angle|15Maximum Depth of Cut (Decimal Inch)|Maximum Depth of Cut (mm)|Insert Size Code|1404Material Grade|C5; C6; C7Width (Inch)|Length (Inch)|11/16Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.3304Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.1750 to 0.1850Corner Radius (Inch)|1/64Inscribed Circle Range (Decimal Inch)|0.3000 to 0.3500Length Range (Decimal Inch)|0.6500 to 0.7000Insert Hand|Right HandSeries|EDPTCoating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|0.13Hole Diameter (Decimal Inch)|0.1339Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Steel; Stainless Steel; Superalloys & TitaniumPrimary Workpiece Material Code|P; M; SSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|EP1404EHDIso Code|EDPT140404PDERHDStandards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|HonedManufacturers Catalog Number|EDPT140404PDERHDCutter Series Compatibility|Mill 1-14Chip Breaker|HDCutting Direction|Material Application|Steel; Stainless Steel; Superalloys & TitaniumUNSPSC Code|Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|SingleIncluded Angle Degree|70Length (mm)|Width (Decimal Inch - 4 Decimals)|0.3300Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.6876System Of Measurement|
